Key Benefits

• Thermal insulation chamber – minimizes energy loss and increases heat exchange efficiency in the pool circuit.
• BS 316L stainless steel fittings on the primary circuit – corrosion resistance and resistance to aggressive agents at high temperatures.
• Special polymer composition fittings on the secondary circuit – flexibility, light weight, and long service life in contact with salt/chlorinated water.

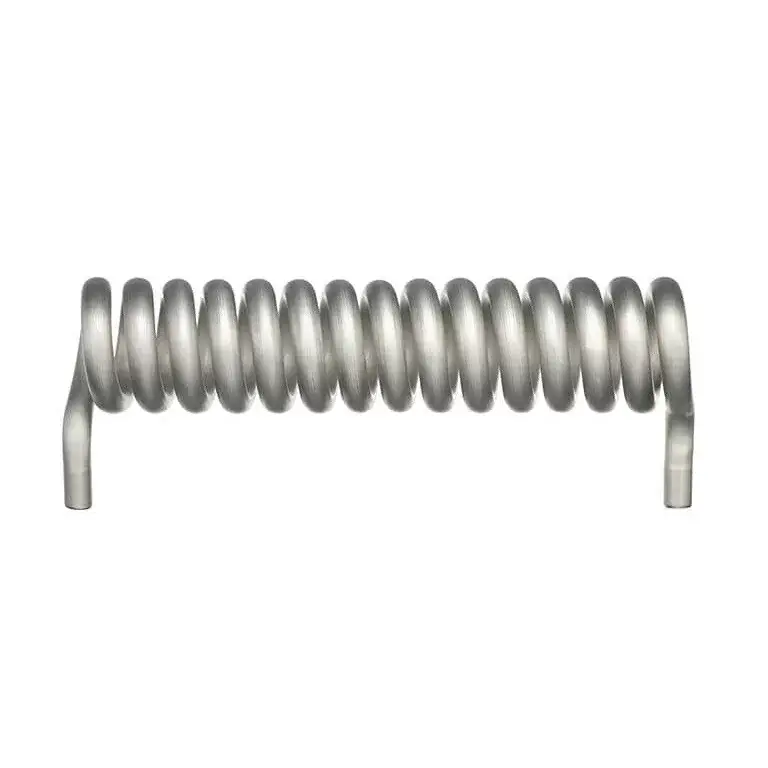

• Large heat exchange surface – spiral tube construction with titanium tubes ensures maximum efficiency with a small temperature difference.

Description

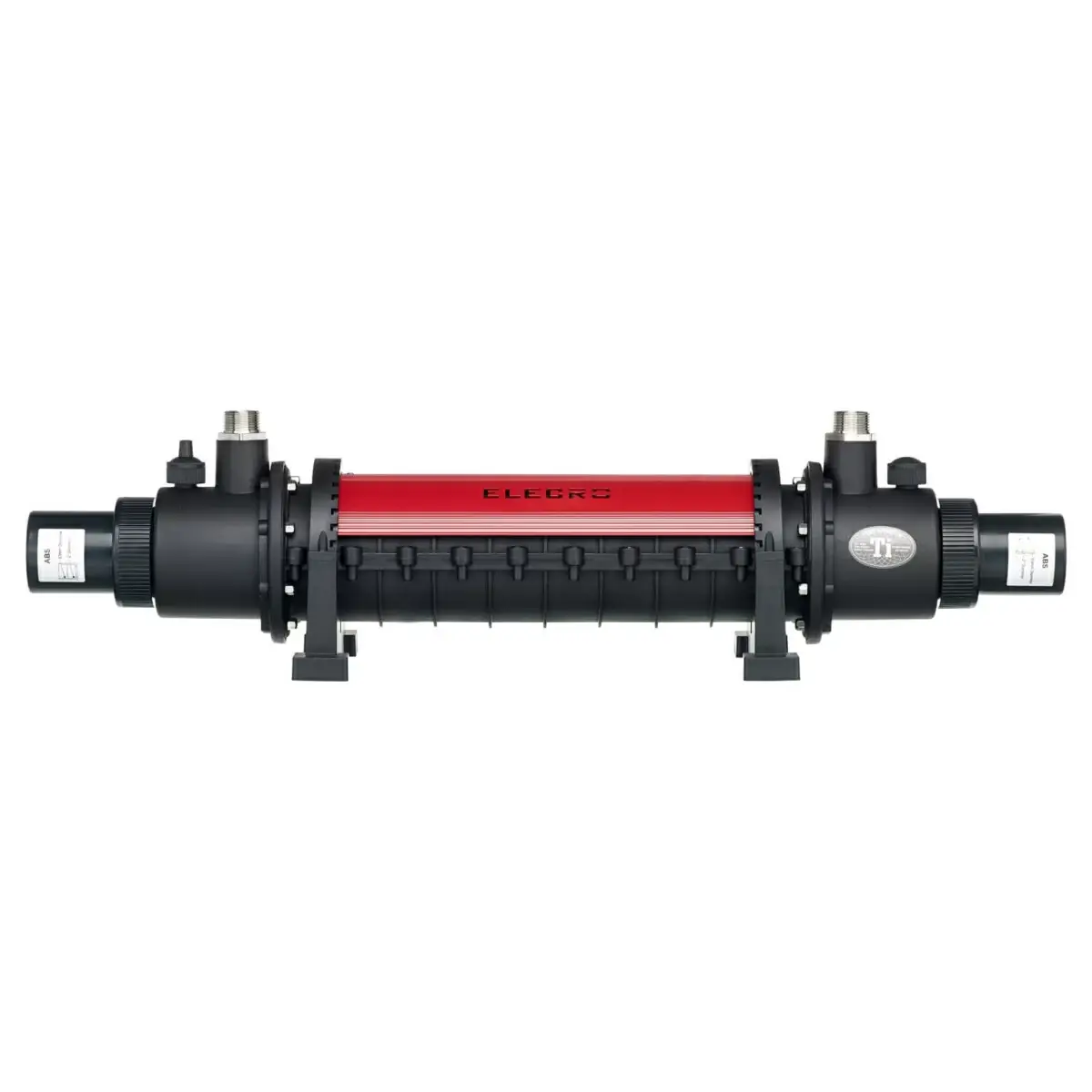

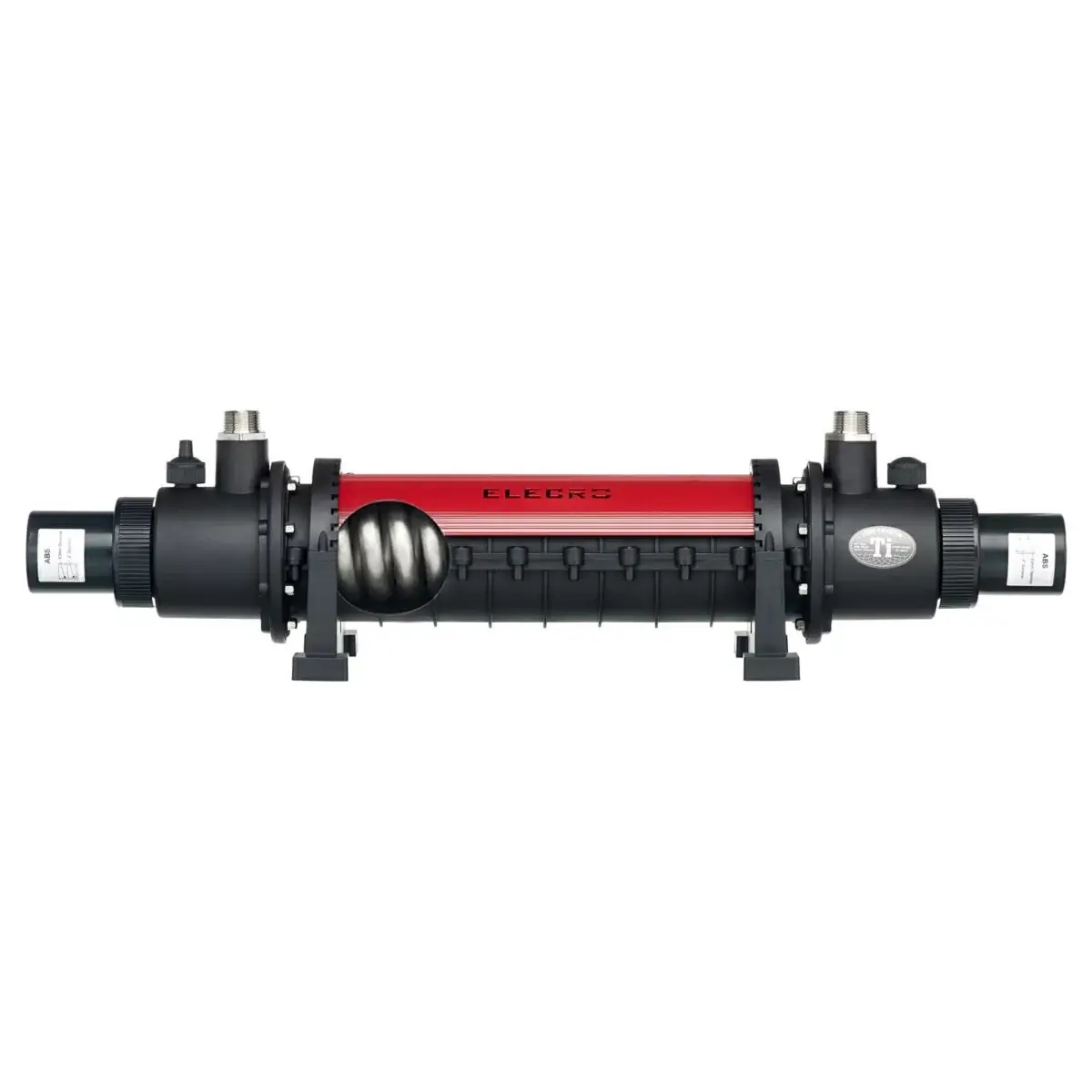

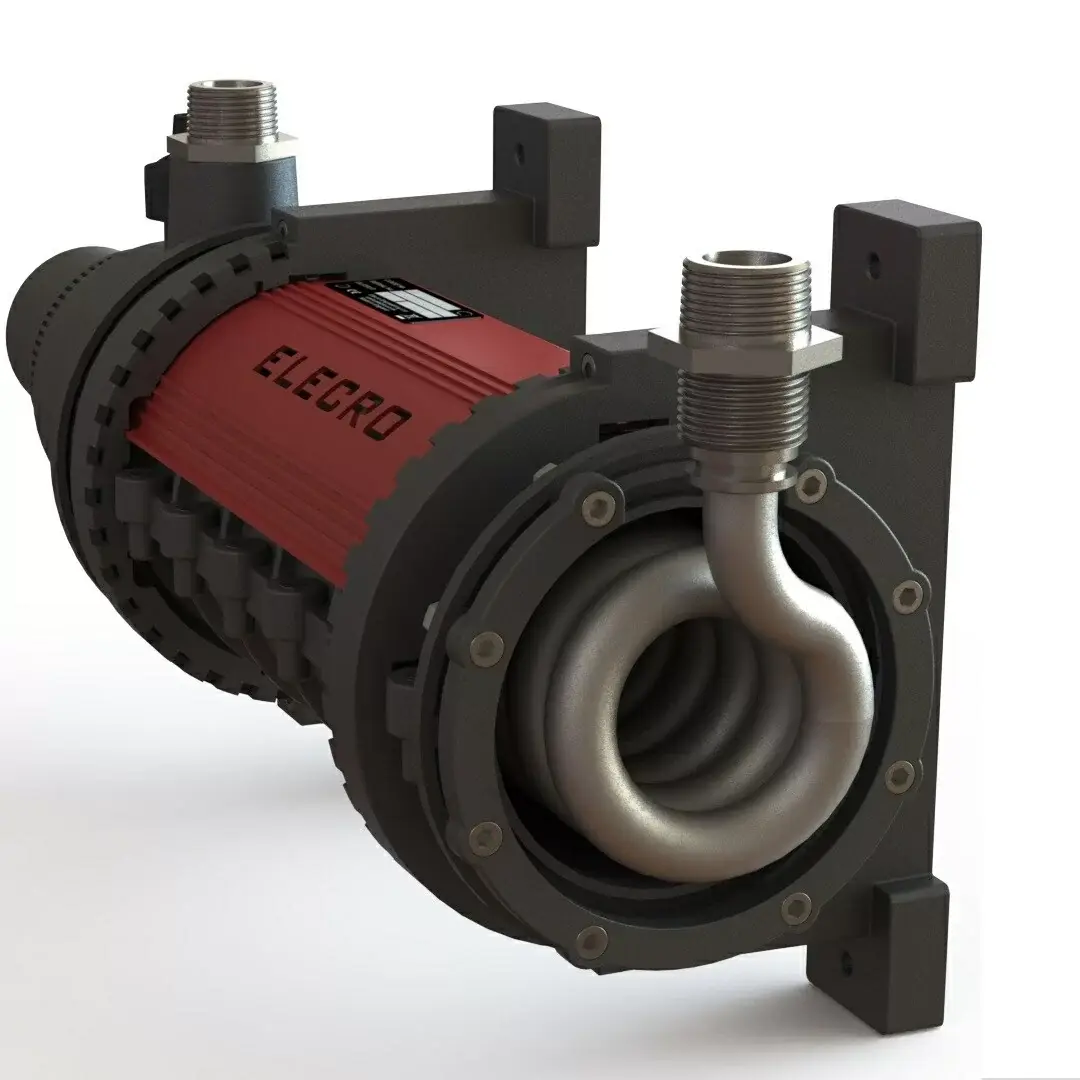

The Elecro SST-36 heat exchanger is an advanced Shell & Spiral Tube device designed for professional water heating in pools and spas. Its core is a spiral titanium tube bundle housed in a high-temperature polymer casing. Thanks to its hard coating, the exchanger can operate under high pressure, and the thermostat pocket and flow sensor simplify integration with control systems.

The unit is designed for use with gas boilers, oil boilers, solar panels, and other heat sources – in both residential and commercial installations. Built-in thermal insulation and BS 316L nickel-chromium steel on the primary side ensure reliability in demanding conditions. The use of special polymer fittings on the secondary side reduces weight and simplifies maintenance while maintaining high resistance to chlorine, salt water, and corrosion.

Thanks to the large surface area of the SST 36 kW exchanger, it efficiently raises pool temperature at a lower operating cost. The 36 kW output and wide compatibility with standard 1" GT (primary circuit) and 50/63 mm (secondary circuit) connections allow for quick installation and system scaling. The insulation chamber further maintains stable external temperature, reducing heat loss even during the shoulder season.

Technical Specifications
