Key Benefits

• 100% clean air – drawn air remains free of contaminants; ideal for allergy sufferers and sensitive skin.
• Fans in optimal position – fans can be mounted in any orientation, making it easy to adapt to existing infrastructure.
• Class F asynchronous motor – exceptionally durable, 1500 rpm, designed for continuous operation at temperatures up to 40 °C.
• No lubrication, maintenance-free – housing and impeller made of aluminum alloys – no wearing parts.
• Universal 400V voltage – designed for three-phase installations in commercial and residential facilities.

Description

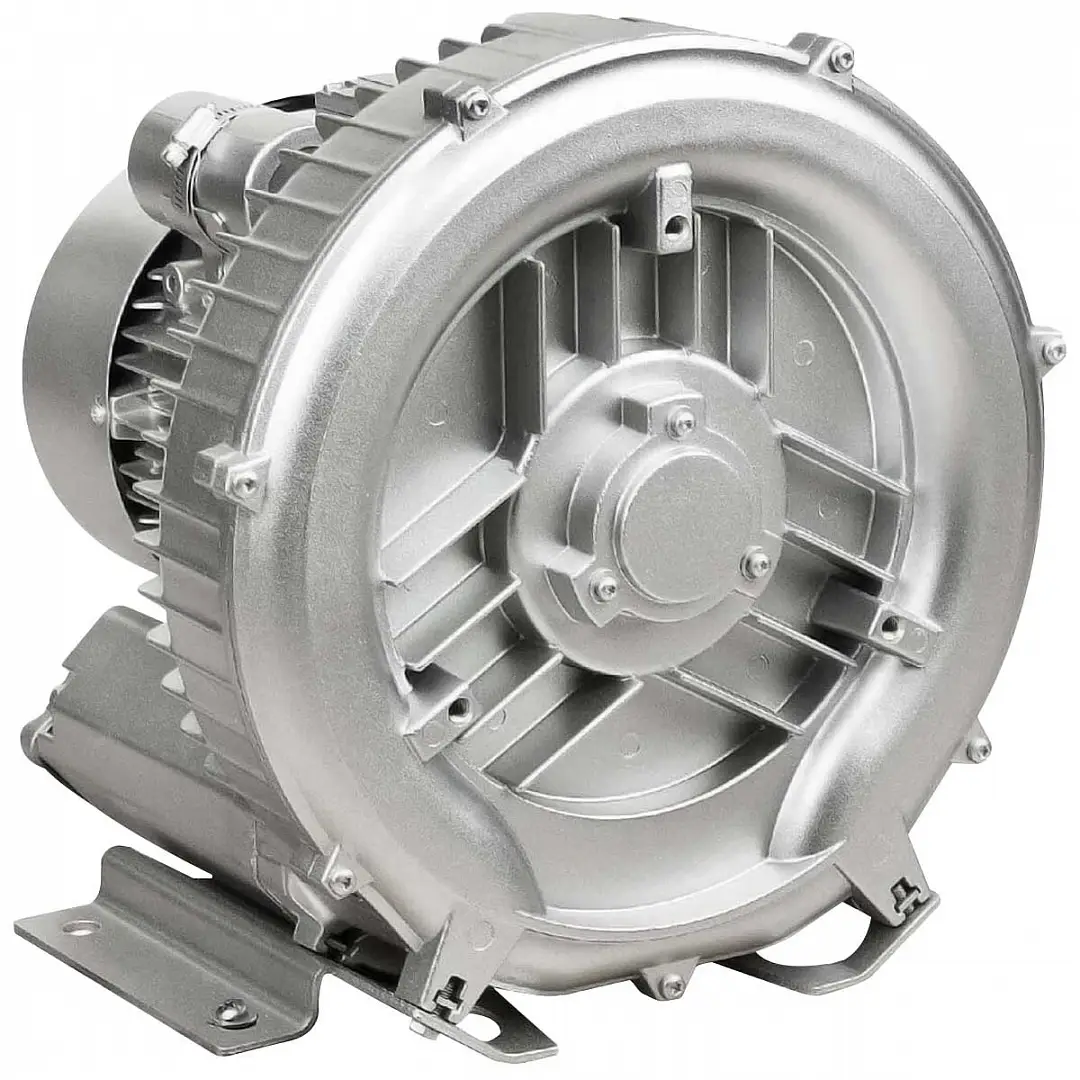

The Grino Rotamik SKH 300 T1 single-stage blower is an excellent solution for setting up professional turbo-massage and air massage in a pool, jacuzzi, SPA area, or hydromassage bath. With an output of 312 m³/h and 2.2 kW power, it provides effective water aeration, creating an intense stream of bubbles with relaxing and therapeutic effects. The compressor housing and impeller are made of aluminum alloy, ensuring corrosion resistance and mechanical durability. No wearing parts and no need for lubrication mean the unit requires no maintenance and is ready for years of service.

The three-phase asynchronous motor with 2.2 kW power and class F insulation maintains 1500 rpm at 400 V, providing a stable pressure characteristic. Maximum working pressure is 220 mbar, and suction height is -230 mbar, allowing the blower to handle even complex system configurations. The pump operates in ambient temperatures up to 40°C and is reliable in any temperate climate zone.

Installation is simple – the housing includes appropriate mounting points that allow the blower to be installed in one of several selected vertical or horizontal positions. The exhaust fan design allows adjustment of the flow direction. The product is covered by a 12-month manufacturer's warranty and is available with full technical support.

Technical Specifications
