Key Benefits

• Reinforced filter housing – high-density polyethylene resistant to corrosion, moisture, UV radiation, chemicals, and weather conditions.
• Minimal maintenance – quartz or glass sand only needs replacement every few seasons; the mesh pre-filter is easy to clean.
• Wide drain opening – allows quick and convenient tank emptying during cleaning or winterizing.
• Included valve – 6-position control valve for easy switching between operating modes (filtration, backwash, circulation, etc.).
• Pump with pre-filter and transparent lid – enables ongoing inspection of the filter element and water flow.
• Flow indicator (sight glass) – allows quick verification that the pump is operating correctly.
• Tank working pressure up to 3.5 bar – ensures safe and reliable operation even under heavy use.

Description

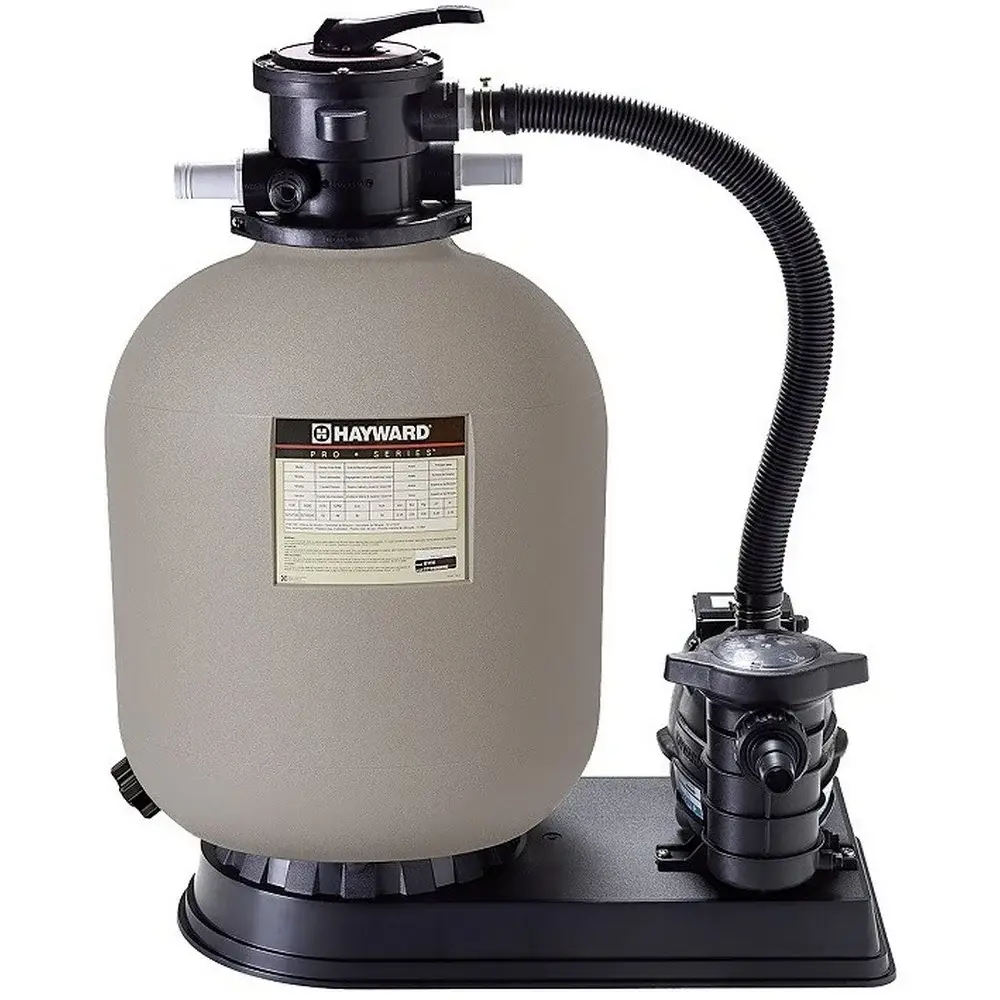

The Hayward Pro Top S166T8103E2 IE2 filter pump with top connection is an excellent choice for residential pools up to 24 m³. Designed to remove mechanical contaminants down to 50 microns. Thanks to its special reinforced construction, the high-density polyethylene housing resists corrosion, moisture, UV radiation, chemicals, and harsh weather – it can be placed outdoors and last for many years.

Quartz or glass sand is used as the filter media (recommended load 50 kg). The circulation pump features quiet operation, high power, and is equipped with a mesh pre-filter with a transparent lid for easy inspection. The modern, energy-efficient IE2 motor ensures reliable operation with minimal operating costs and significantly reduces energy consumption compared to older models.

The set also includes a 6-position control valve for easy switching between operating modes (filtration, backwash, circulation, closed, etc.). The wide drain opening facilitates quick tank emptying during cleaning or winterizing. With the flow indicator (sight glass), you can monitor the unit's operation in real time. It's a "fill once and relax all season" solution – minimal maintenance, maximum performance.

Technical Specifications
