Key Benefits

• High performance – flow rate of 66 m³/h and power of 4.3 kW ensure effective circulation in large pool facilities.
• IE3-class TEFC motor – enclosed, self-cooling motor with insulation class F, meeting the latest energy-saving standards and ensuring long service life.
• Resistance to saltwater and seawater – hydraulic unit made of Noryl and impeller of the same material enable operation in aggressive environments.
• Pre-filter with transparent cover – makes filter inspection and maintenance easy. Secured with 4 bolts for tightness and safety.
• Lightweight and durable construction – fiberglass-reinforced thermoplastic is more affordable than cast iron or bronze and is corrosion-resistant.

Description

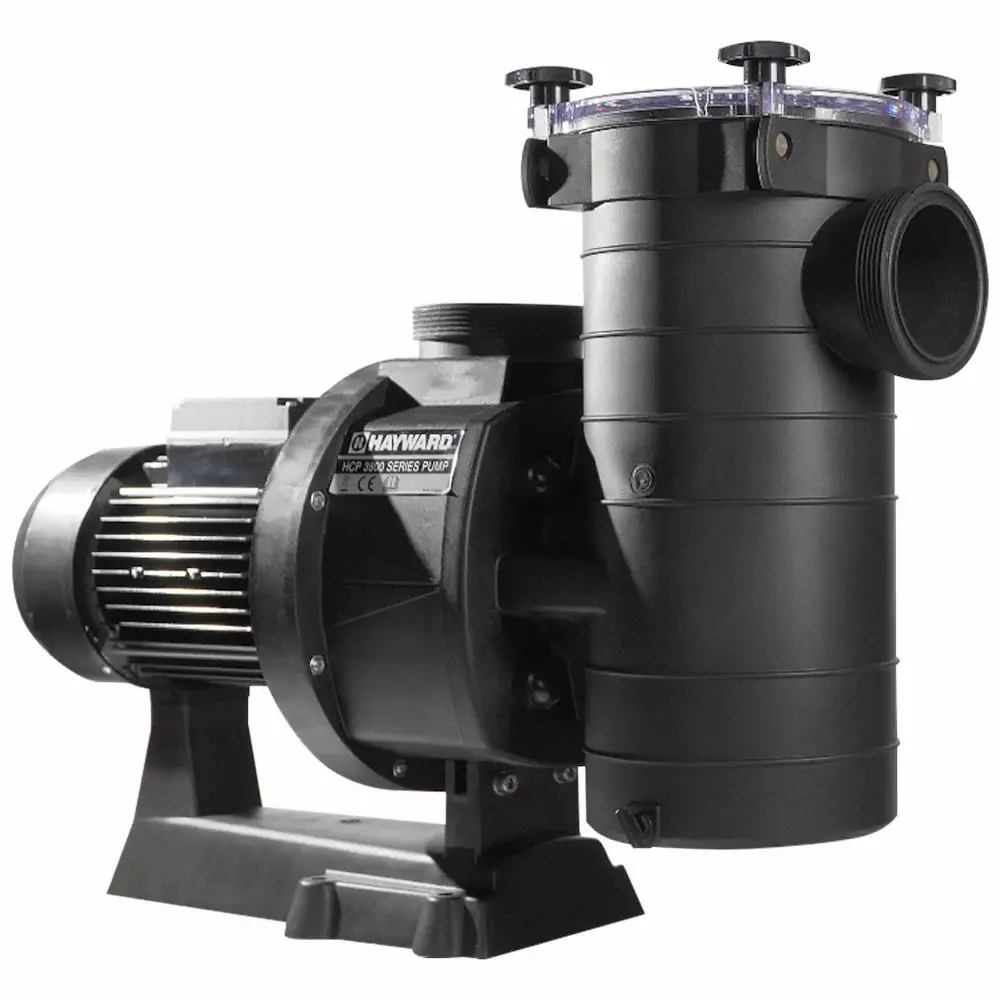

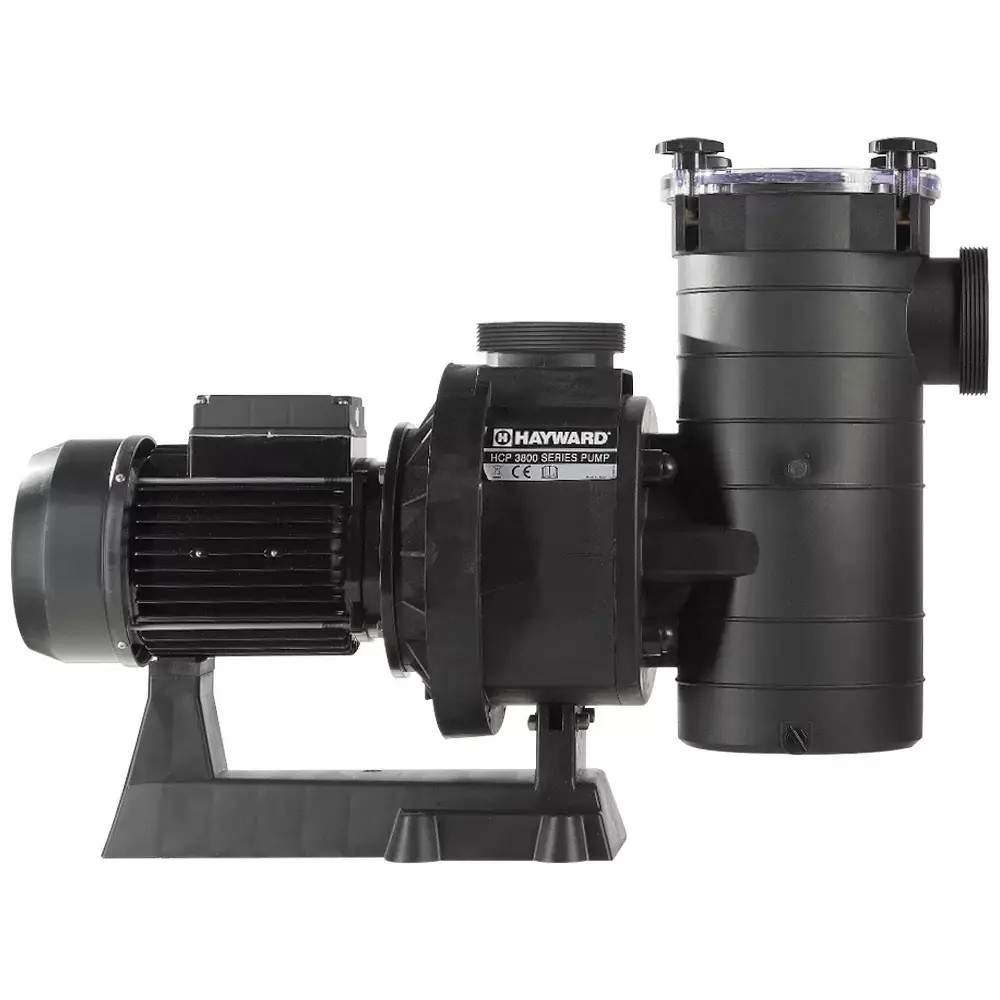

The three-phase centrifugal pump Hayward HCP38453E3 with pre-filter is a reliable solution for water filtration and circulation in commercial pools. Designed as an alternative to high-performance cast iron and bronze pumps, it offers strength and flexibility at a significantly lower weight. All hydraulic units are made of lightweight, durable fiberglass-reinforced thermoplastic (GRP) along with polyamide and Noryl. As a result, the pump operates quietly, and the highly efficient TEFC motor with IE3 energy efficiency class ensures low operating costs and long service life.

Model HCP38453E3 is equipped with a transparent pre-filter cover secured with 4 bolts, making cleaning and impeller inspection quick and easy. Insulation class F and the TEFC self-cooling motor guarantee reliable operation even under heavy loads and high ambient temperatures. The pump is designed for fresh, salt, and seawater – suitable for sports, recreational, and hotel pools.

The Hayward HCP38453E3 must be installed with motor protection switches as required by the manual. Three-phase connection and switch settings must be performed by a qualified electrician based on the nameplate. To maintain the 24-month warranty, regular maintenance and timely replacement of consumables are necessary.

Technical Specifications
