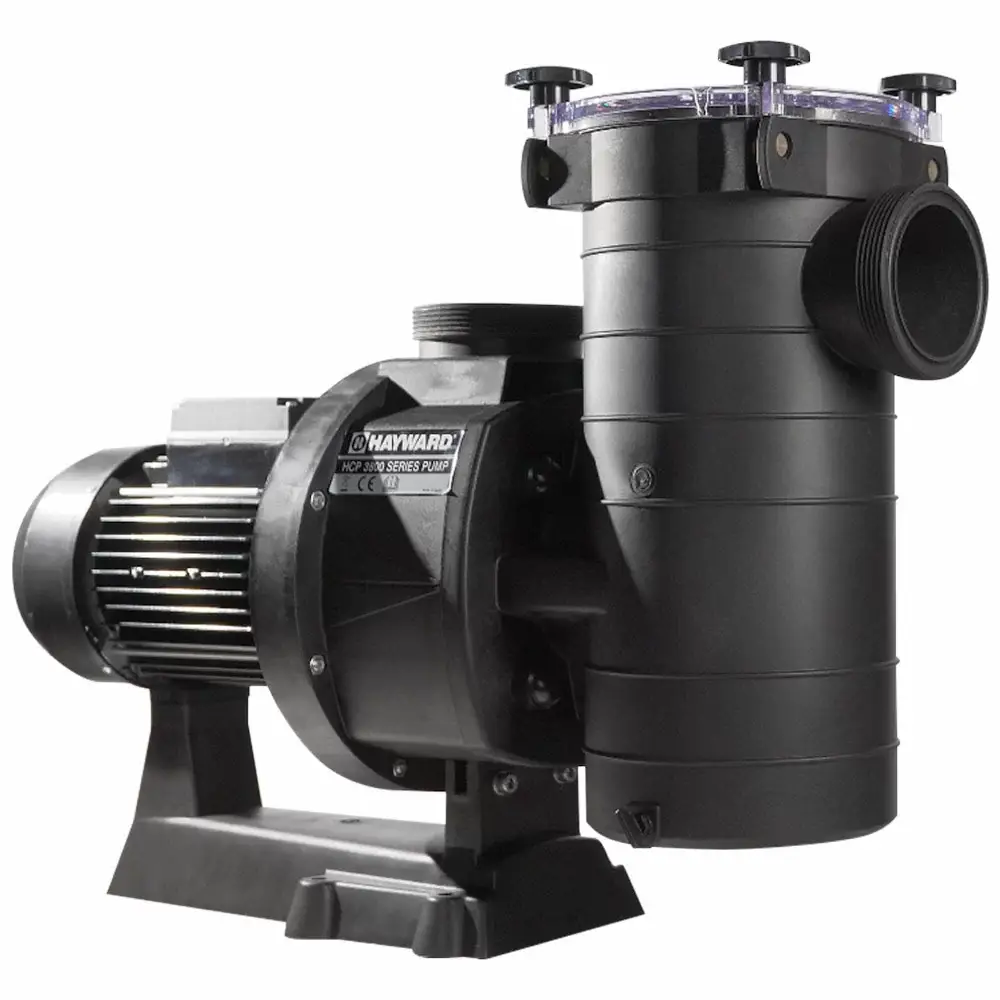

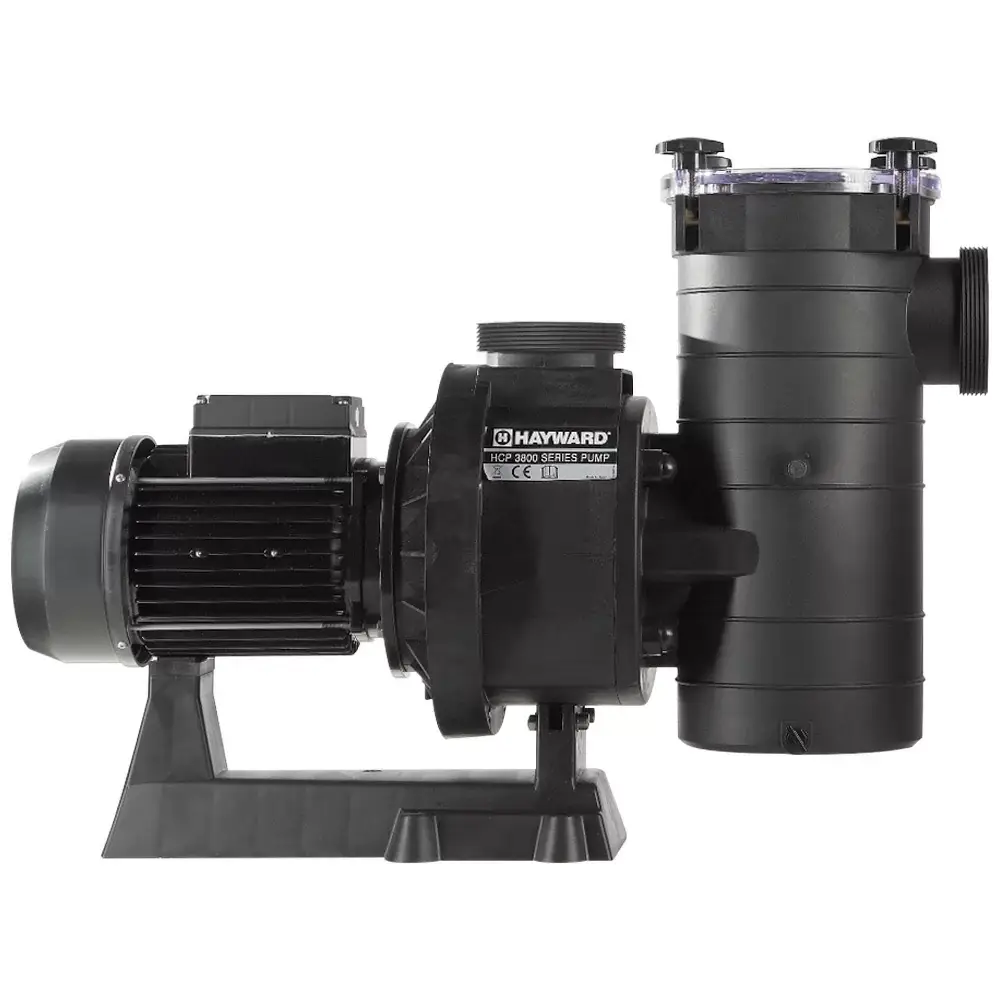

Hayward HCP38253E3 KAP250 T1.B IE3 Pool Pump (380 V, 41 m³/h, 2.5 HP)

Key Benefits

• High performance – 41 m³/h (at 2.3 kW) ensures fast filtration in large commercial pools.
• IE3 TEFC motor – top-tier energy efficiency class, compact and self-cooling.
• Corrosion-resistant materials – impeller and hydraulics made of Noryl; resistant to salt and seawater.
• Strainer basket – transparent cover secured with 4 bolts; easy access and maintenance.
• Raised base stand – improved motor ventilation; extends service life.
• Easy service – 24-month warranty with regular inspection and replacement of consumables.

Description

The Hayward HCP38253E3 centrifugal pump with strainer basket is a proven solution for water circulation and filtration in commercial and sports pools up to 165,000 L. The HCP series is designed as a reliable alternative to high-performance cast iron and bronze pumps – made from lightweight and durable fiberglass-reinforced thermoplastic.

Noryl hydraulic units allow trouble-free use with saltwater and seawater. The model is equipped with a TEFC (totally enclosed fan-cooled) motor with high power and very high IE3 energy efficiency class, meeting the latest energy-saving standards. Motor speed 2850 RPM at 50 Hz, rated current 8.3/4.8 A.

The pump features a strainer basket with a transparent cover secured with 4 bolts for easy debris inspection. The raised base stand improves motor ventilation. The product is covered by a 24-month warranty subject to regular service and replacement of consumables. Connection to a motor protection switch requires a qualified electrician.

Technical Specifications
