Key Benefits

• Operational safety – polypropylene housing and IP65 protection guard against moisture and dust; Class 2 insulation eliminates the need for grounding.
• Precise dosing – adjustable output 1.5–4 L/h (configurable to 1, 2, or 4 L/h) and pressure up to 1.5 bar.
• Easy installation – includes mounting frame and tube fittings, significantly speeding up setup.
• Level control – optional output for empty tank signaling (enhances process safety).
• Speed adjustment – feed frequency can be tailored to individual needs.

Description

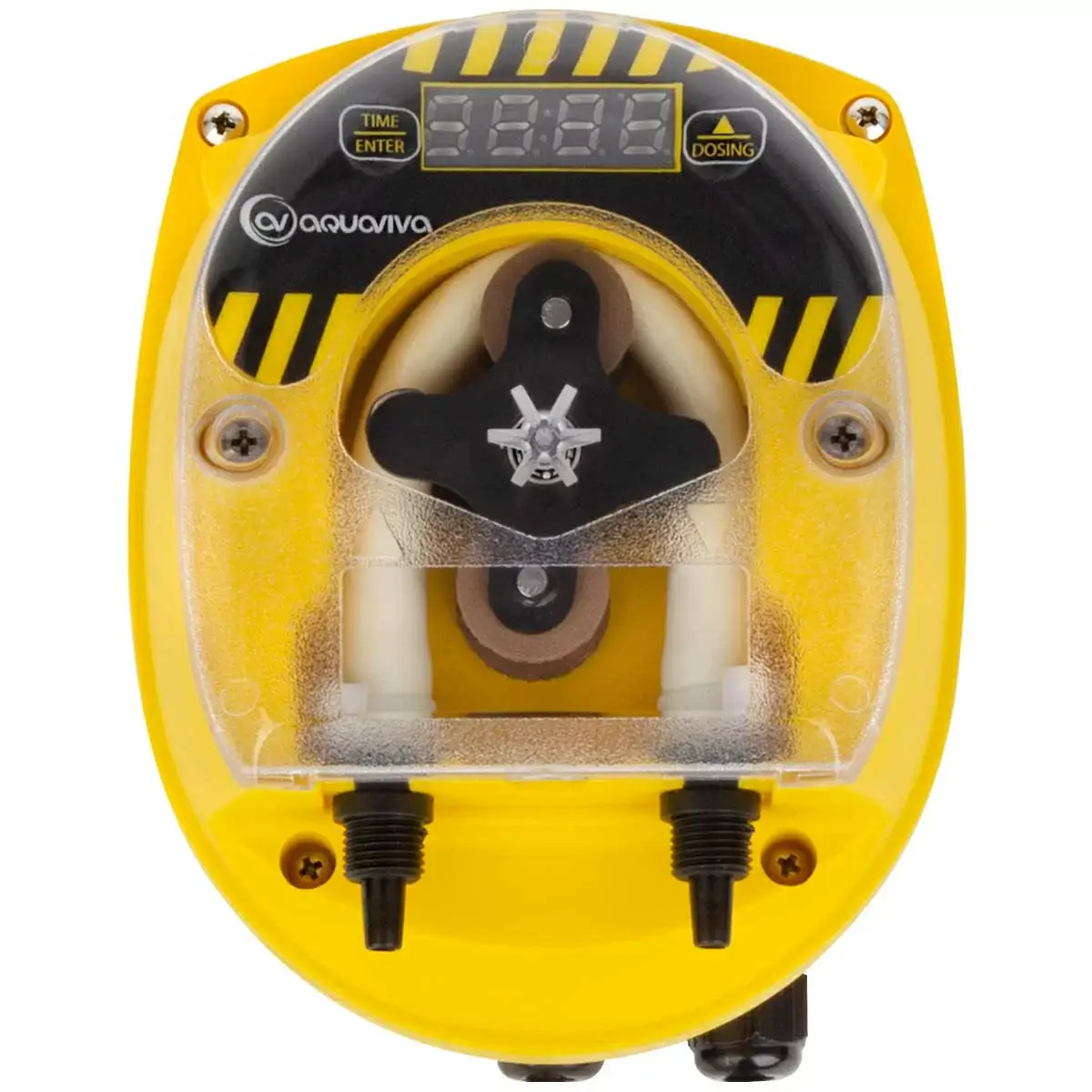

The Aquaviva SKCK Universal peristaltic dosing pump is the optimal solution for precise feeding of liquid reagents and cleaning agents in technical facilities. Its operating principle – compressing a flexible tube via a mechanical unit – guarantees a steady, uninterrupted flow without the pumped liquid contacting pump components. This makes the equipment exceptionally durable and requires only minimal maintenance.

The Aquaviva series uses high-quality Santoprene tubes – a fully cross-linked TPE elastomer resistant to most chemicals, including sodium hypochlorite and hydrochloric acid. This makes the pump ideal for dosing pool disinfectants, pH adjusters, and cleaning agents in production plants. With its analog control panel and optional level control, you can easily adapt pump operation to your specific process requirements.

The sturdy polypropylene housing and IP65 protection rating ensure reliable operation in harsh environmental conditions, while low power consumption (3.5 W) makes this device an economical choice for years to come. The pump is ready to use straight out of the box – the set includes a mounting frame and tube fittings.

Technical Specifications
