Key Benefits

• Timer with LED display – 4-digit LED screen simplifies programming and monitoring of filtration cycles.
• Pump output 16A – high current capacity allows connection of most pool pumps.
• 20% overload protection – automatic safeguard prevents damage in case of current surge.
• IP65 protection rating – moisture and dust resistant, ideal for installation near the pool.
• Auxiliary contact 5A – free relay enables control of lighting or other devices.
• Intuitive LED indicators – diodes indicate pump status, alarm, filtration programs, and auxiliary output.

Description

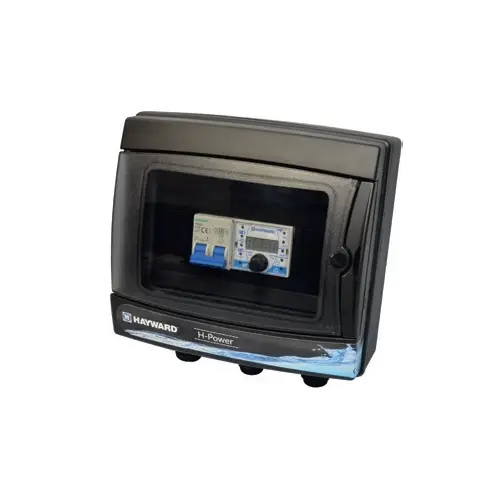

The Hayward H-POWER-380V panel is an advanced yet easy-to-use pool filtration control system. Equipped with a ground fault circuit interrupter (GFCI), it enhances user safety by detecting even small current leaks. The timer with LED display allows precise setting of filtration cycles – from simple schedules to complex programs – while LED indicators visualize the current device status.

The panel's construction is based on a rugged enclosure with IP65 protection rating, ensuring reliable operation even in humid pool environments. The use of an auxiliary relay with 250V / 5A contacts enables independent control of pool lighting, additional filter, or ventilation. With a maximum terminal cross-section of 4 mm² for power circuits, installation is quick and safe.

Electrical parameters of 380V/50-60Hz and a 16A pump output make this panel an ideal choice for controlling single-phase pumps in medium to large filtration systems. The Hayward H-POWER-380V combines the reliability of the renowned Hayward brand with the functionality required in modern pool installations.
