Key Benefits

• Bluetooth Connectivity – With the Bluetooth module, control your pool filtration from anywhere using the T-link Piscine app. Set schedules, monitor pump operation, and respond in real time.
• Built-in Timer and GFCI – Program filtration cycles exactly as needed. The integrated GFCI provides additional protection against electric shock and short circuits.
• 5A Auxiliary Relay – Use the free contact (250V / max. 5A) to control pool lighting or other auxiliary devices without needing additional modules.
• Overload Protection (20% above calibrated current) – The panel automatically responds to excessive load, protecting the pump and installation from damage.
• LED Display with Status Indicators – A clear 4-digit LED screen and indicator lights for pump operation, alarm, filtration programs, auxiliary output, and time. Facilitates quick diagnostics and parameter monitoring.
• High IP65 Rating – Dust-tight and splash-proof enclosure – ideal for installation in the pool area near filtration equipment.
• Simple and Intuitive Interface – Even on first use, setup is quick and hassle-free. Buttons and a clear LED layout make parameter adjustment easy.

Description

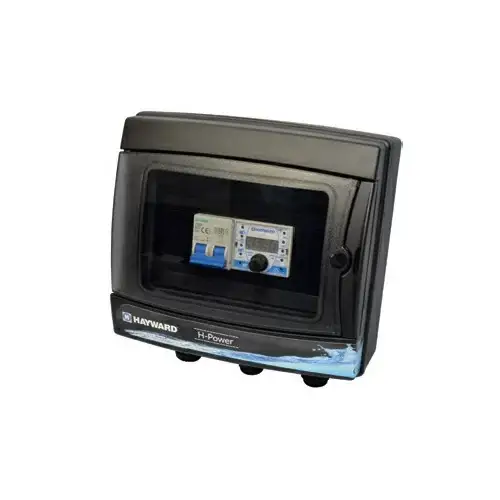

The Hayward H-POWER-230V filtration control panel is a modern solution for managing your pool's cleaning system. Designed to control a single-phase pump and auxiliary devices (e.g., LED lighting). Equipped with a timer and GFCI, it provides not only convenient programming of filtration cycles but also electrical safety – protecting both equipment and pool users from short circuits or overloads.

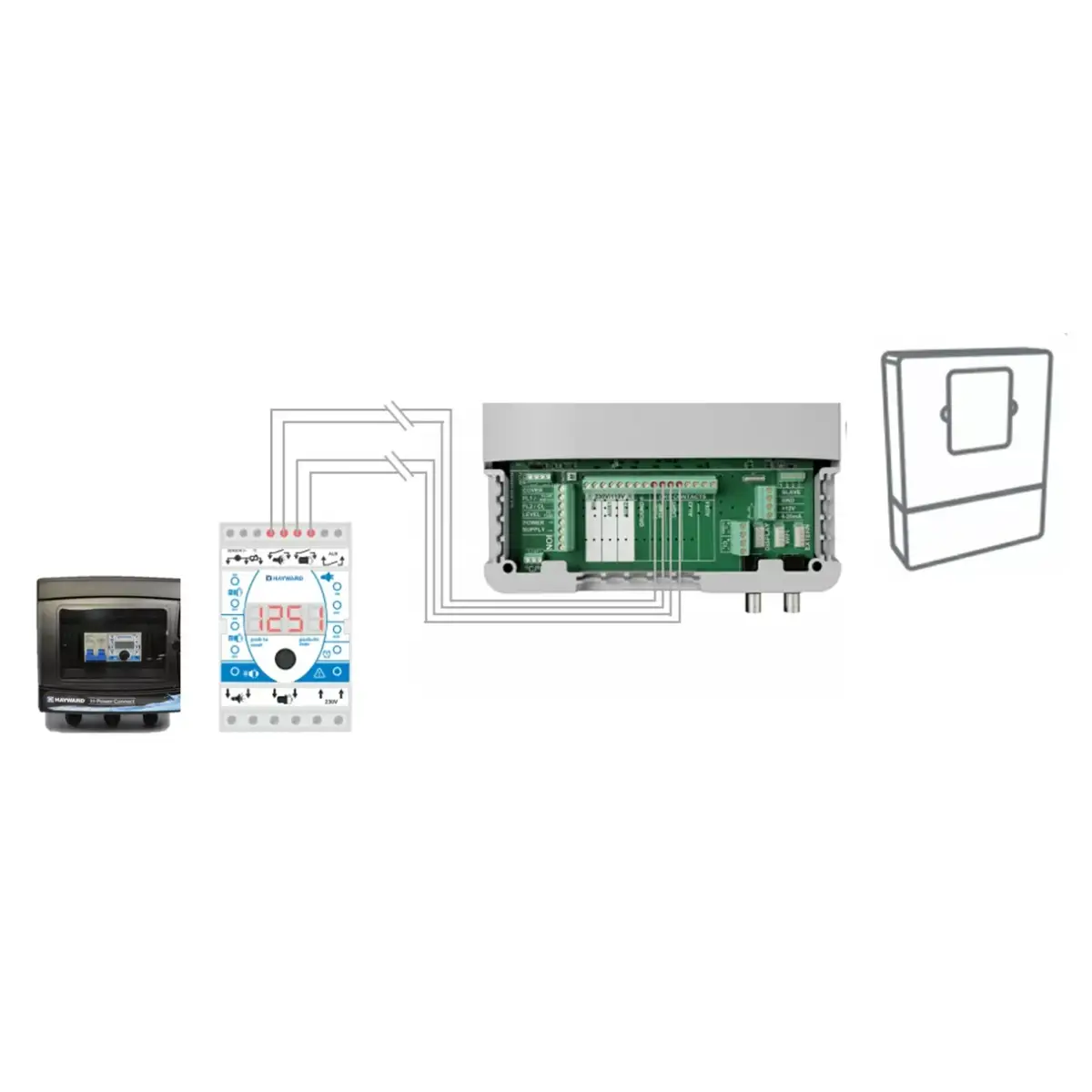

The built-in Bluetooth module enables wireless control via the dedicated T-link Piscine app on your smartphone or tablet. This allows you to adjust pump runtime, turn on lighting, or check system status without having to approach the panel. This is especially useful for backyard pools where the panel is often located in a remote equipment room or hard-to-reach area.

The model supports 230V/50-60Hz mains, pump output current up to 14A, and maximum terminal cross-section of 4 mm² (power) and 2.5 mm² (control). Integrated overload protection (20% above calibrated current) and an IP65 rating ensure reliable operation in demanding conditions. The panel is suitable for both new pool installations and as a replacement for older, less functional controllers.

Technical Specifications
