Key Benefits

• Intuitive interface – a clear 4-digit LED display and indicator lights for pump status, alarm, filtration programs, auxiliary output, and run time make quick monitoring and programming easy.
• Built-in GFCI – enhanced user safety thanks to immediate power cutoff in the event of a ground fault.
• Timer and auxiliary functions – ability to program filtration cycles, control pool lighting, and manage additional devices (dry contact 250V / max. 5A).
• Rugged IP65 protection – dust-tight and splash-proof enclosure, ensuring operation in harsh outdoor conditions, in temperatures from -10°C to +55°C.
• Overload protection – a relay protects the pump from overload (20% above calibrated current), extending equipment life.

Description

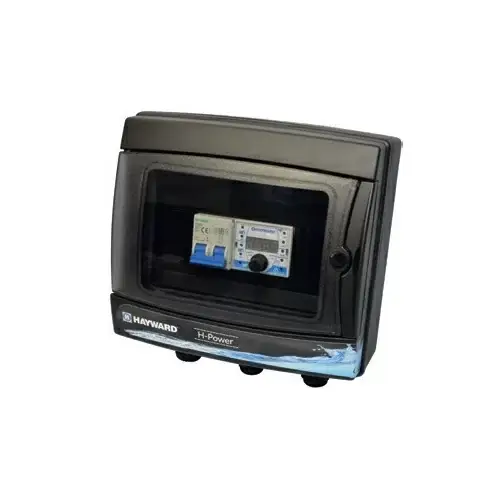

The Hayward H-POWER-230V filtration control panel is an advanced control unit that centralizes management of the pool filtration system. It integrates seamlessly with single-phase pumps up to 14A, enables time-based programming of filter cycles, and controls pool lighting. With the built-in timer and auxiliary relay (dry contact 250V / 5A), you can automate additional devices such as circulation pumps, chemical feeders, or UV lamps.

The panel is equipped with a Ground Fault Circuit Interrupter (GFCI) that protects users from electric shock and safeguards the installation from network faults. Overload protection (20% above calibrated current) further protects the pump from damage due to mechanical overload. The intuitive interface with a 4-digit LED display and status indicators makes configuration and parameter reading easy, even without advanced technical knowledge.

The IP65-rated enclosure allows installation in locations exposed to moisture, dust, and temperature variations from -10°C to +55°C. The panel operates on a standard 230V / 50-60Hz supply, making it a universal solution for most residential pools. The product comes with a 12-month manufacturer's warranty, confirming its high build quality.

Technical Specifications
