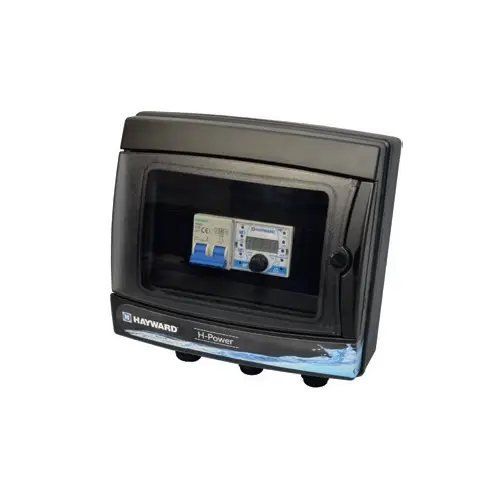

Hayward HPO-SWIM 230V NCC Water Attractions Control Panel, 16A (Timer)
377 € (gross)
In stock
Total (gross):
377 €
Available pieces:
10
Product description
Product description
Hayward – professional pool and water feature solutions
Hayward HPO-SWIM 230V NCC, 16A (Timer) Water Feature Control Panel
Precise control and protection for single-phase pumps in water features
The HPO-SWIM panel is an advanced control and protection device designed for single-phase pumps powering counter-current jets, waterfalls, water cannons, and massage jets. It monitors operating parameters such as current and voltage, and if thresholds are exceeded (overload, underload, phase loss, excessive starts), it immediately shuts down the pump, protecting it from damage. With a built-in timer and LED indicators, the operator has full control over work cycles and alarm status.
Key Benefits
- Multi-function protection – protects the pump against overload, underload, phase loss, and excessive start frequency.
- Timer and start delay – time settings minimize current surges and extend pump life.
- HERGA air switch – model 6871-AK ensures reliable on/off control of the control circuit.
- LED indicators – panel LEDs signal pump operating status, alarm, and current exceedances (min/max).
- Alarm output (ALARM) 230V/5A – allows connection of an external signaling device or monitoring system.
- Compact IP65 enclosure – splash and dust resistant, operates in temperatures from -10°C to +55°C.
Description
The Hayward HPO-SWIM control panel is the heart of any installation equipped with single-phase pumps for water features – counter-current jets, waterfalls, water cannons, and water massage. The device not only turns the pump on/off but also continuously monitors its current and voltage, alerting to deviations from normal (overload, underload, phase loss, frequent starts). This prevents costly failures and extends motor life.
The built-in timer with delayed start (20 s) and the ability to set minimum (0.5...40 A) and maximum (0.6...40 A) current thresholds provide flexibility in adjusting settings to specific pump models. LED indicators on the Freshway enclosure communicate status: run, alarm, min/max current exceedance. An additional 230 V alarm output allows connection of external signaling.
The panel is built to industrial standards – solid 4 mm² terminals for power circuits and 2.5 mm² for control circuits. The IP65-rated enclosure ensures reliable operation in high humidity and rain. With compatibility for 230 V/50-60 Hz and operation in temperatures from -10°C to +55°C, the device works in indoor and outdoor pools all season long.
Technical Specifications
Power Supply230 V
Device TypeControl Panel
Supply Voltage230 V / 50-60 Hz
Main Alarm Output (ALARM)230 VAC, max. 5 A
Maximum Current Value0.6–40 A (7 s) Auto
Minimum Current Value0.5–40 A (4 s with 20-second start delay) Off
Max. Terminal Cross-Section (Power)4 mm²
Max. Terminal Cross-Section (Control)2.5 mm²
Air SwitchHERGA model 6871-AK
Pump Outputmax. 16 A
ProtectionIP65
Additional Protectionsoverload, underload, phase loss, excessive start frequency
LED IndicatorsPump operation, max. current, min. current, alarm
Temperature Range-10...+55 °C
Warranty12 months
Choose reliable control – the Hayward HPO-SWIM 230V panel guarantees safety and long-term trouble-free operation of your water features. Order today and enhance comfort and safety in your pool facility.
