Key Benefits

• Maximum output 70 m³/h – excellent for pools up to 280 m³, providing fast circulation and effective water treatment.
• Durable construction – fiberglass-reinforced thermoplastic housing, Noryl impeller and AISI 316 stainless steel hydraulic components – resistant to fresh and salt water.
• IE3 high-efficiency motor – IE3 efficiency class, 3000 RPM, Class F insulation – energy savings and long service life.
• Versatile application – designed for counter-current systems, hydromassage, water features, and as a circulation pump in large pools.
• Easy installation and service – 110 mm connection, 24-month warranty with regular service and replacement of consumables.

Description

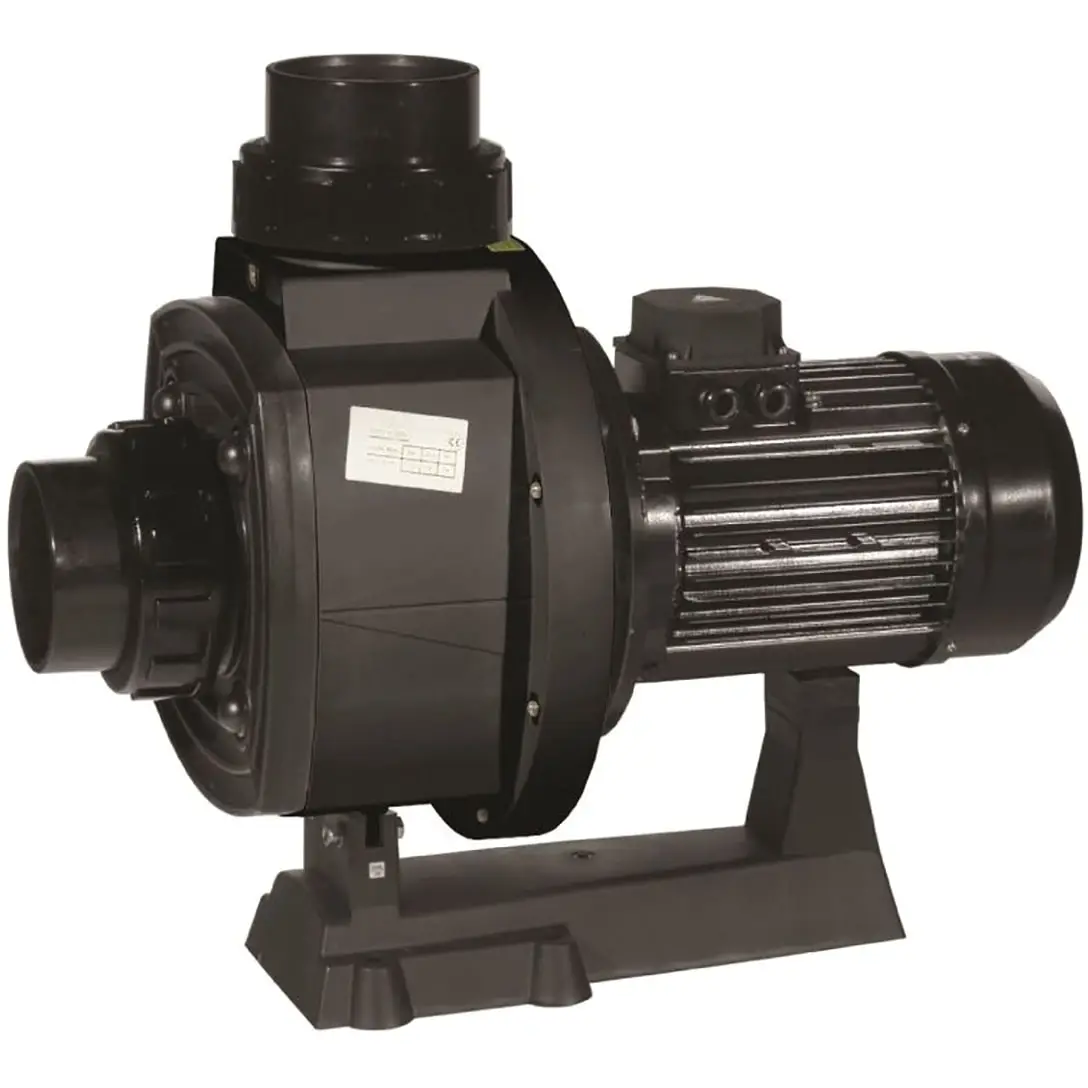

The Hayward HCP11553E7 KT510T2.B IE3 pump is the reliable heart of any pool up to 280 m³. The three-phase 380V motor with 4.7 kW power and 70 m³/h output ensures fast water circulation, essential for maintaining cleanliness and user comfort. Thanks to IE3 efficiency class, the pump consumes less energy than traditional models, resulting in lower electricity bills.

The fiberglass-reinforced thermoplastic housing provides resistance to corrosion and mechanical damage. The impeller and hydraulic components made of Noryl and AISI 316 stainless steel allow operation with both fresh and salt water, making the pump ideal for coastal pools or saltwater systems.

The pump is intended for applications without a pre-filter – it works perfectly in counter-current installations, hydromassage, and water features. To maintain the 24-month warranty, regular service, replacement of consumables, and installation of a motor protection switch by a qualified electrician are required. Three-phase connection and switch setting must be performed according to the nameplate.

Technical Specifications
