Key Benefits

• Automatic chemical-free disinfection – the generator converts salt into free chlorine, eliminating algae, bacteria, and microorganisms without manual dosing.
• Self-cleaning electrolytic cell – reverse polarity prevents scale buildup, extending the life of the titanium electrode with ruthenium coating.
• Full control and customization – chlorine output adjustable from 0 to 100%, super-chlorination function, and optional pH controller connection.
• Durable ABS construction – control box rated for high temperature, cell housing UV- and corrosion-resistant for long-lasting performance.
• Intuitive LCD operation – 2.8-inch color display with self-diagnostics, water temperature measurement, and operating status information.

Description

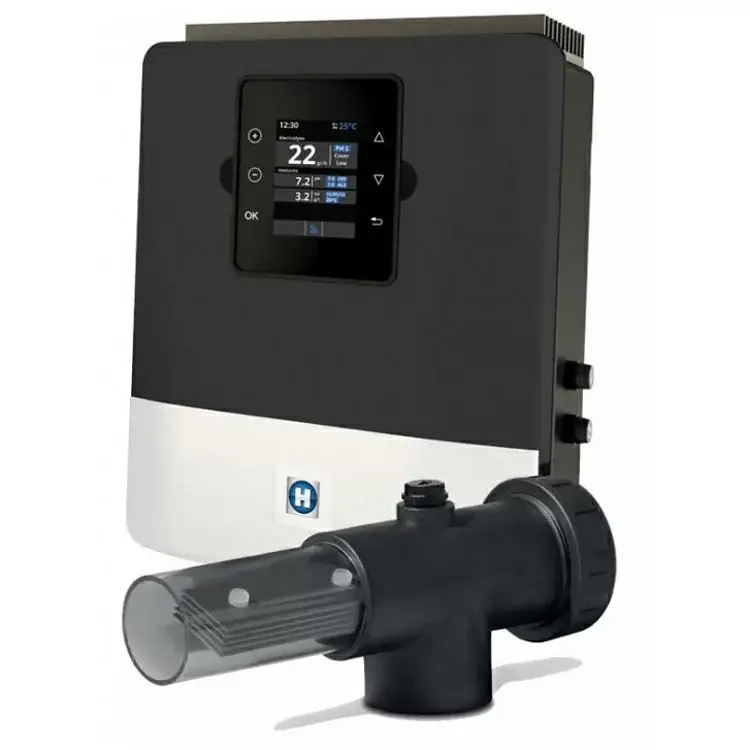

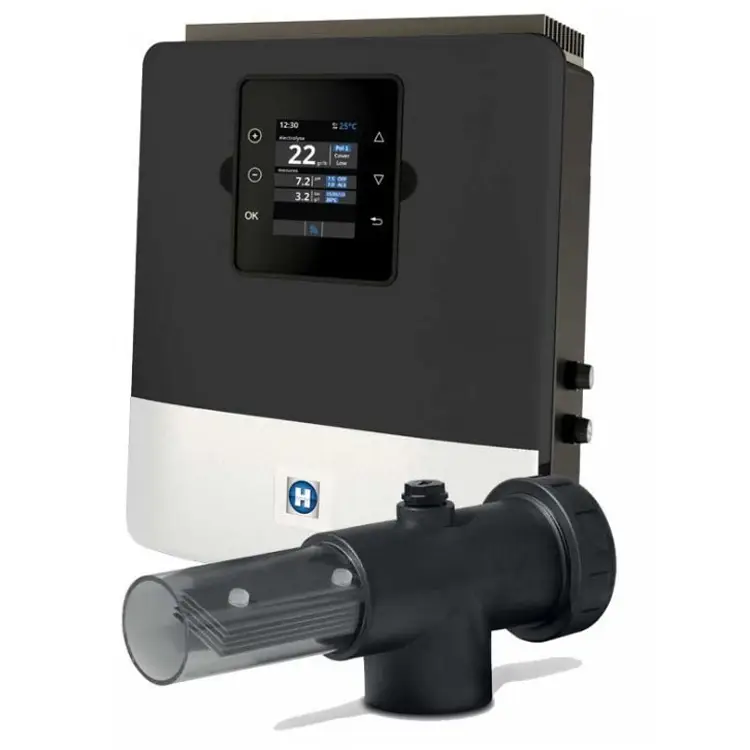

The Hayward AquaRite LTO automatic chlorine generator is a proven solution for residential pool owners who want to eliminate manual handling of chlorine tablets and liquids. The unit uses salt electrolysis (concentration 3.2–100 g/L) to produce pure free chlorine on-site. This provides effective disinfection and naturally softened water.

The AquaRite LTO model is designed for pools up to 65 m³ (at 16 g/h output). Advanced electronics allow output adjustment from 0 to 100%, super-chlorination (24-hour intensive production and filtration), and monitoring via a clear 2.8-inch color LCD. The self-diagnostic system alerts to deviations, and optional pH controller connection gives full water quality control.

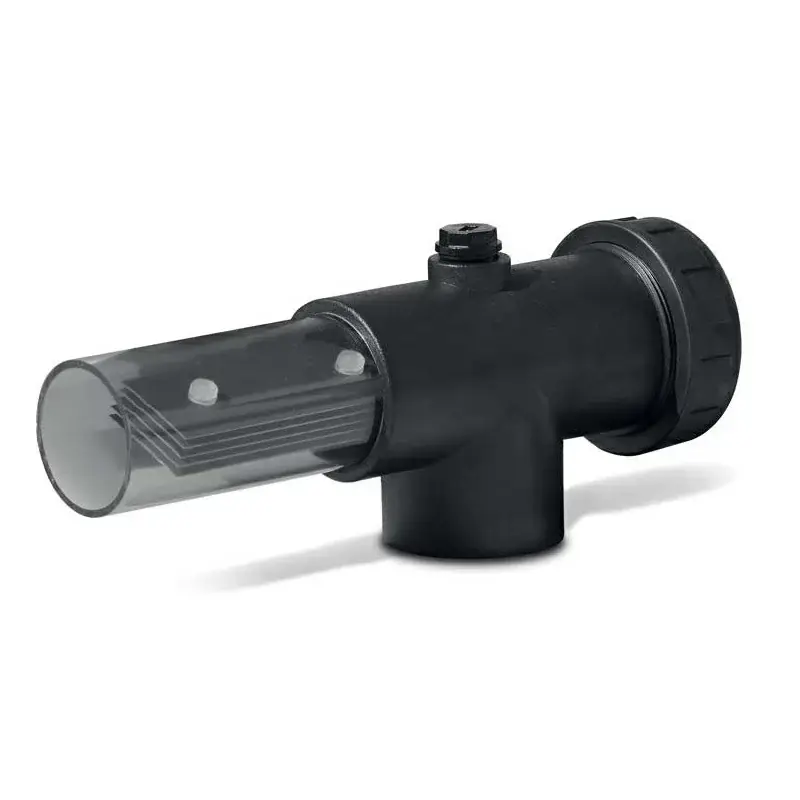

The cell housing (UV- and corrosion-resistant ABS) and titanium electrodes with ruthenium coating ensure long-term operation without cleaning – reverse polarity automatically removes deposits. The cell can be installed horizontally or vertically. The model includes a flow sensor and open/closed surface sensor, with a maximum working pressure of 200 psi.

Technical Specifications
