Key Benefits

• 4.3" touch LCD display – intuitive interface for easy setup and water parameter monitoring.

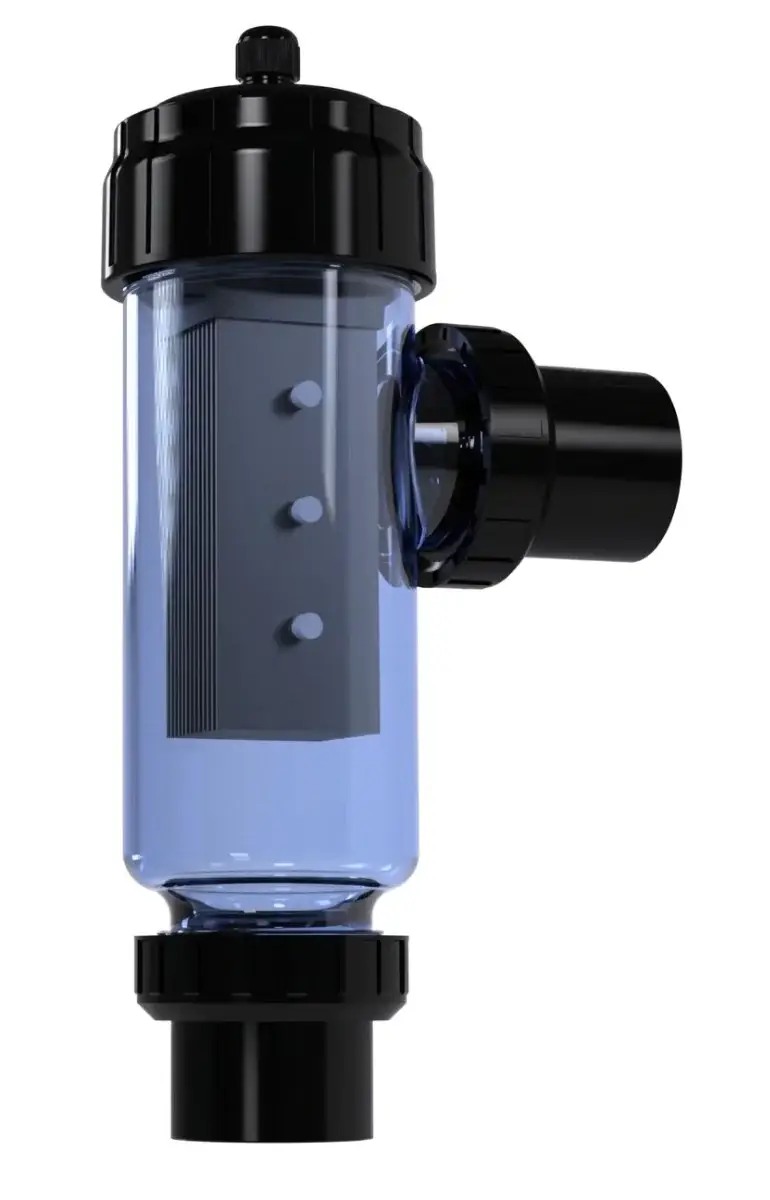

• Titanium electrolytic cell – in a plastic housing, corrosion-resistant for long life.
• Built-in pH, ORP, salinity, and temperature sensors – included, enabling precise water quality maintenance.
• Smart Life app control – Wi-Fi 2.4 GHz, compatible with iOS and Android, real-time remote access.
• Supports 3 dosing pumps – acid, chlorine, base – automatic dosing for perfect chemical balance.
• Control of additional equipment – pump, heater, UV system, lighting, pool cover – all from one panel.
• Winter mode – reduces chlorine production to 85%, saving energy off-season.
• Operating modes: Normal / Hard / Intensive – match output to current needs.
• Freeze protection – automatic circulation prevents system damage.
• Flow sensor – automatic shutoff when water is absent, enhancing safety.
• Work schedule – 4 time slots for electrolysis, dosing, and pump – full automation.
• Real-time notifications – alerts when parameters exceed limits sent to your smartphone.
• Calibration buffers included – pH 4, pH 7, and ORP 256 mV – easy sensor calibration.
• Modbus RS485 port – integration with smart home systems (Home Assistant, etc.).

Description

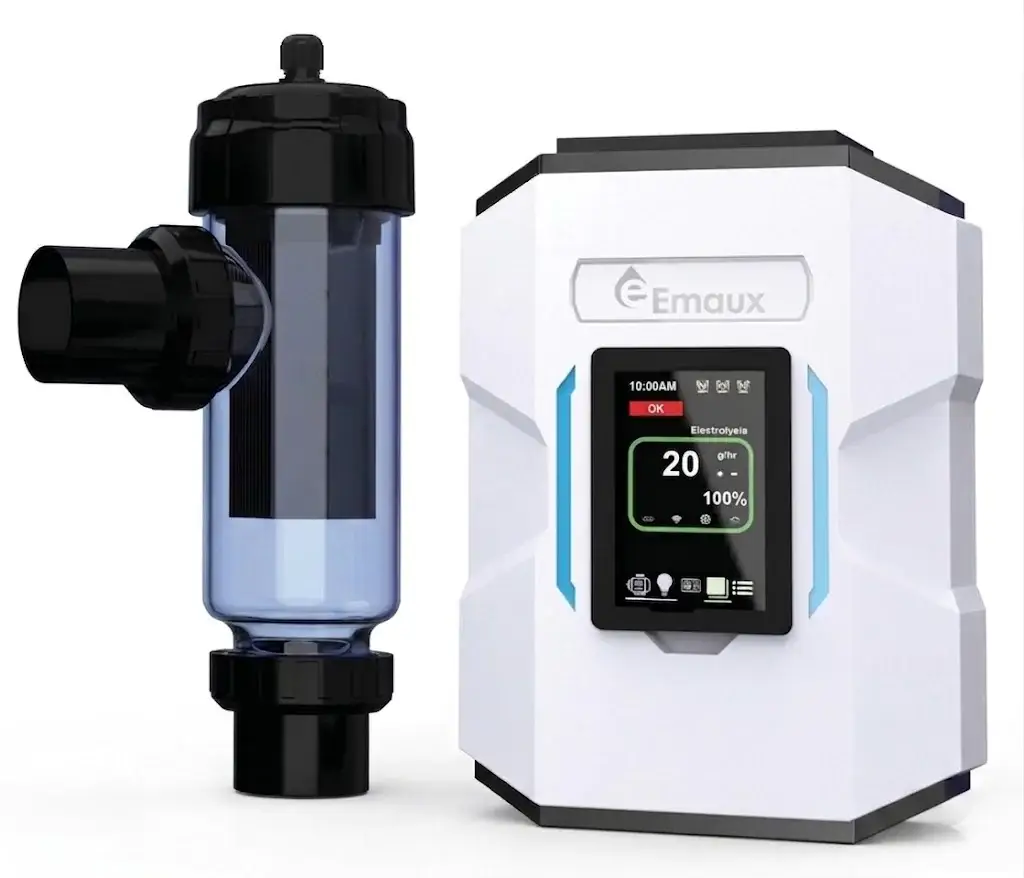

The Emaux CyberSync Pool Station CS-A20 is an advanced electrolysis station that converts table salt (NaCl) into pure chlorine without chemicals. Operating at low salt concentration (from 1 g/L), the water does not irritate eyes, skin, or hair – ideal for families with children and allergy sufferers. The unit handles pools up to 60 m³ (at 3 g/L salinity) and produces 20 g of chlorine per hour.

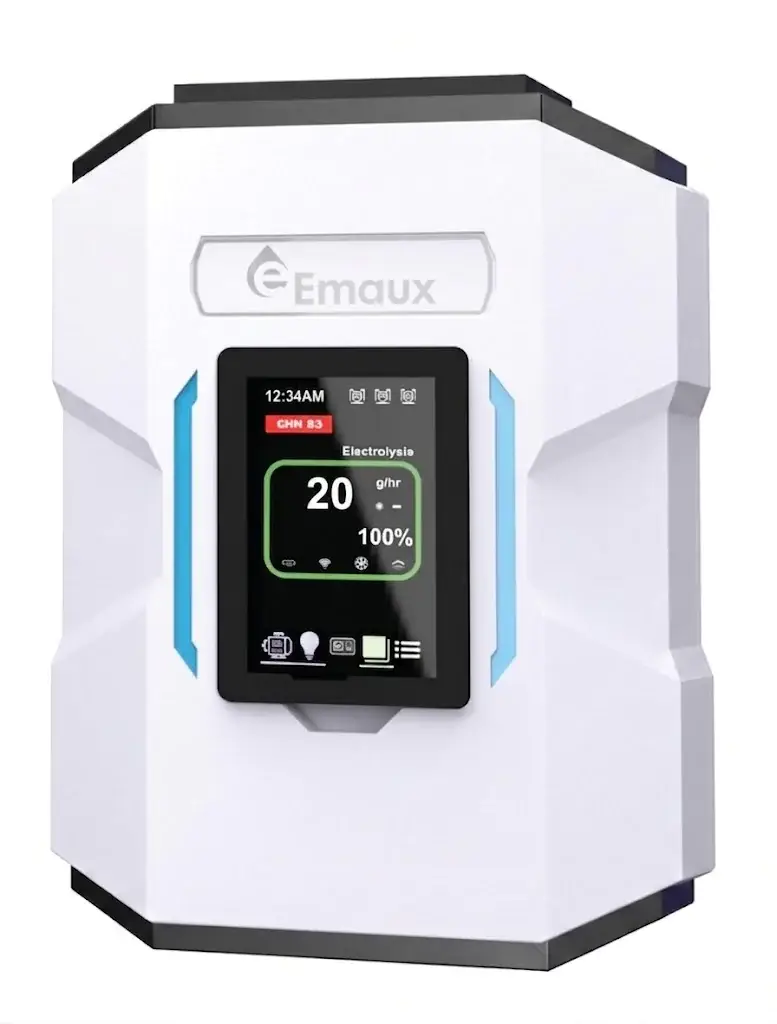

The station features a 4.3" touch LCD display with an intuitive interface for easy scheduling, mode selection (Normal / Hard / Intensive), and real-time water parameter monitoring. Built-in pH, ORP, salinity, and temperature sensors (included) provide full control over water quality. With the Smart Life app (Wi-Fi 2.4 GHz), you can remotely control not only electrolysis but also the pump, heater, UV system, lighting, and pool cover – all from your smartphone.

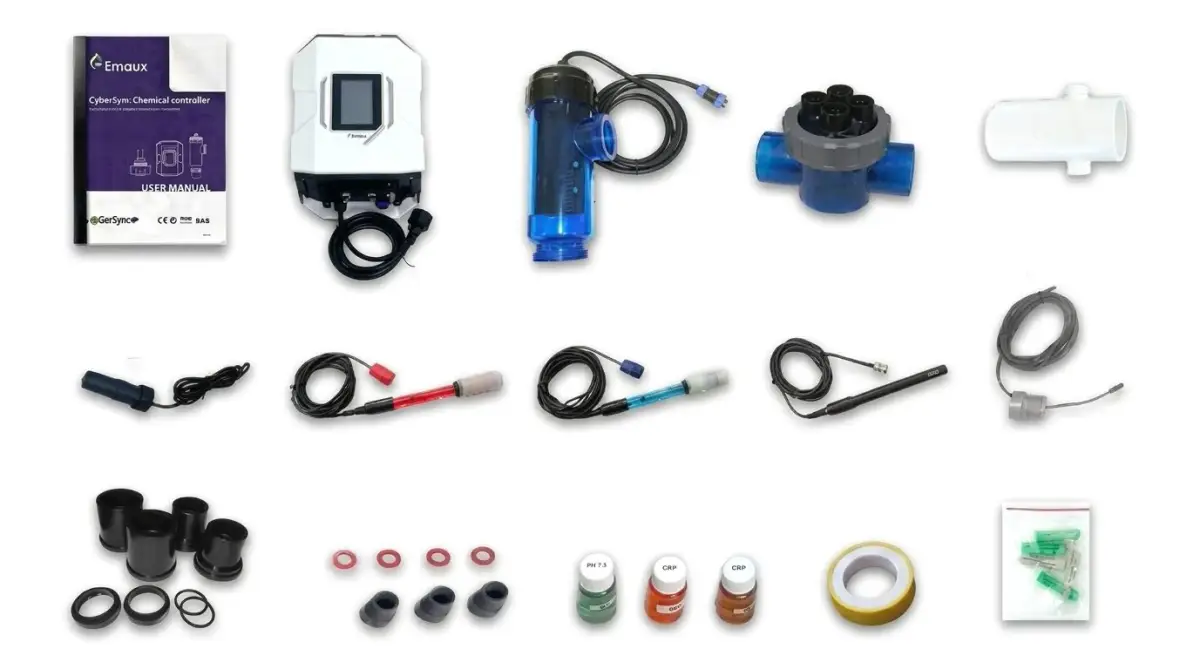

Safety is a priority: the flow sensor automatically shuts off the unit when water is absent, and freeze protection activates circulation when temperatures drop. Winter mode reduces chlorine production to 85%, saving energy. The Modbus RS485 port allows integration with smart home systems, and the kit includes calibration buffers (pH 4, pH 7, ORP 256 mV) and sensors. This is a comprehensive pool management tool – convenient, efficient, and reliable.

Technical Specifications
