Key benefits

• Efficient flow rate of 24.9 m³/h – rapid water treatment in large-capacity pools and spas.
• 360° rotating clamp – allows free positioning of the multiport valve, simplifying operation.
• 6-position multiport valve – select operating mode (filter, rinse, recirculate, backwash, etc.) without replacing components.
• UV protection and impregnation – fiberglass-reinforced tank, resistant to sunlight, suitable for outdoor installation.
• Easy maintenance – top diffuser distributes water over the sand bed, and high-pressure drain enables quick winterizing and flushing.
• 2" universal connectors (63 mm) – simplify connection to the pool plumbing.

Description

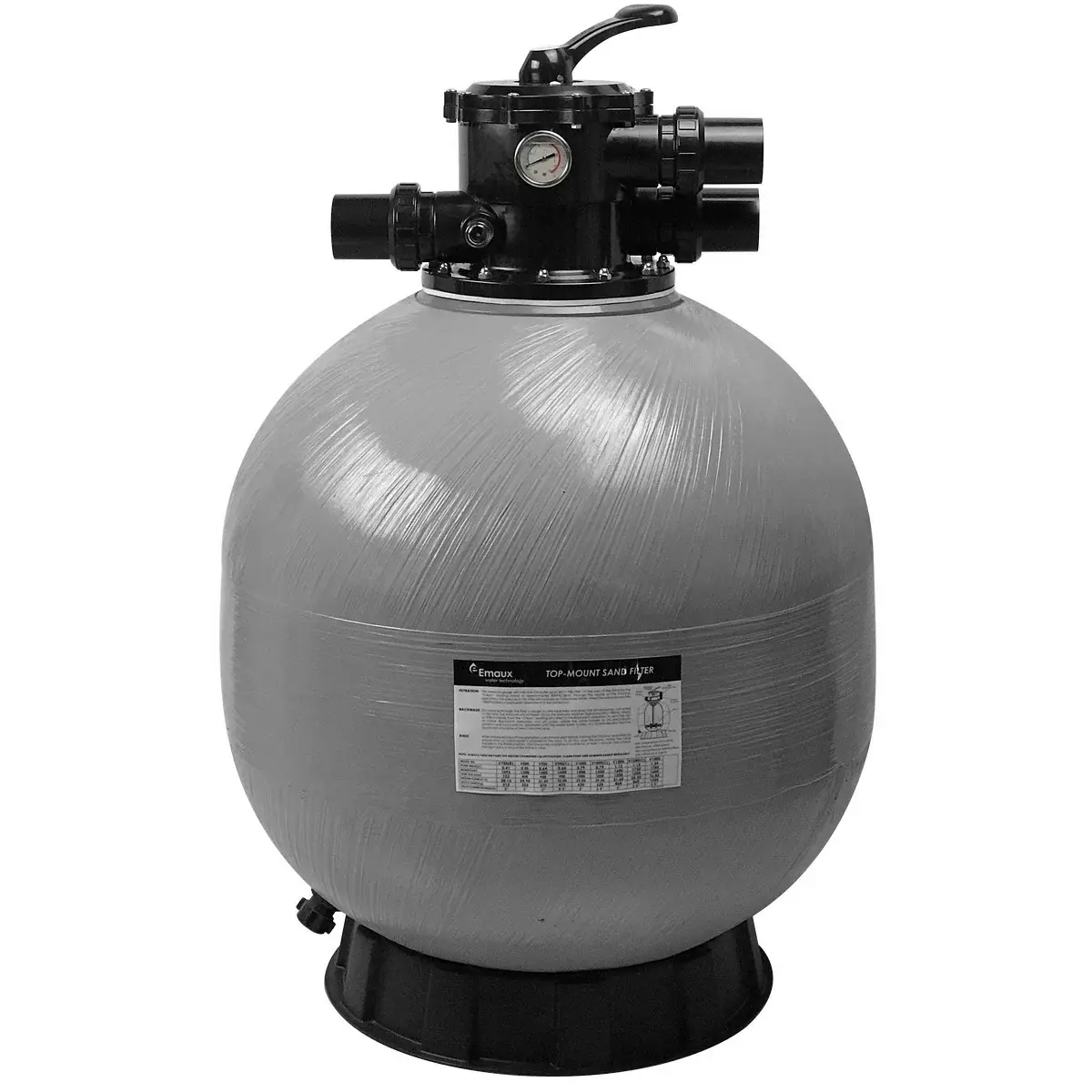

The Emaux V800 sand filter is a robust solution for owners of private pools and spas up to 100,000 L. Its 24.9 m³/h flow rate delivers fast, efficient filtration, keeping water clean without overloading the pump. With a sand load of 355 kg (using the recommended specific filter media grade), you achieve maximum dirt retention capacity.

The fiberglass-reinforced tank material and special UV impregnation ensure a long service life, even under direct sunlight. The 6-function multiport valve with a 360° clamp makes selecting the appropriate mode – from filtration to rinsing – convenient and intuitive. The drain plug and efficient sand/water drain simplify seasonal maintenance, allowing quick winterizing of the filter.

The 2" (63 mm) top connections fit standard pool plumbing, and the top diffuser promotes even water distribution over the sand layer. The Emaux V800 sand filter is a reliable investment in cleanliness that will effectively protect your pool water for years.

Technical specifications
