Key Benefits

• Titanium heating element – spiral design creates a funnel-shaped flow path, preventing scale buildup and extending unit life.
• Versatile application – heats pool water, including salt and seawater, without corrosion risk.

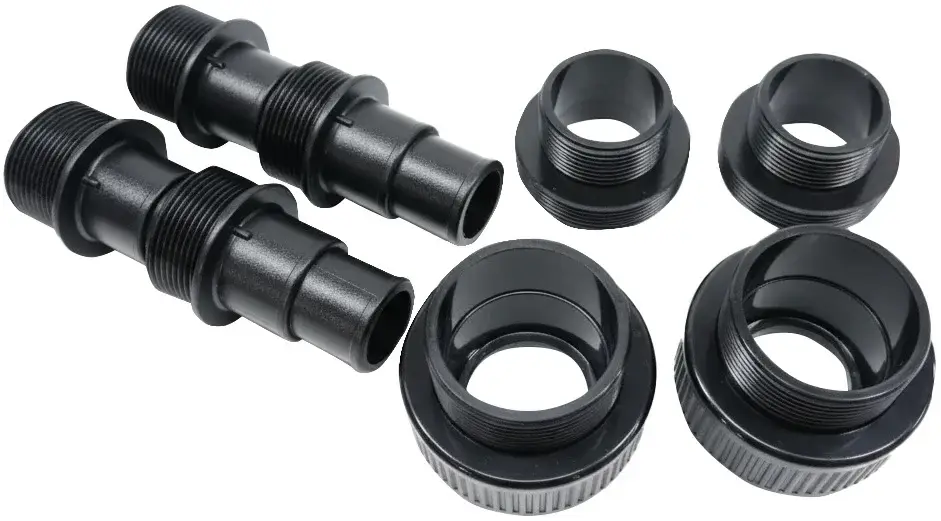

• Easy installation – floor or wall mount, compatible with 50 mm ABS connectors and 1½" thread.
• Precise temperature control – analog thermostat with 0–45°C range (1.2°C steps) allows accurate water temperature setting.
• Safe operation – thermal safety switch (60°C with manual reset) and flow switch with titanium pivot shaft protect against overheating.
• Compact and durable housing – IP44 protection rating, operating pressure up to 4 bar, seals made of high-temperature EPDM and TPE polymer.

Description

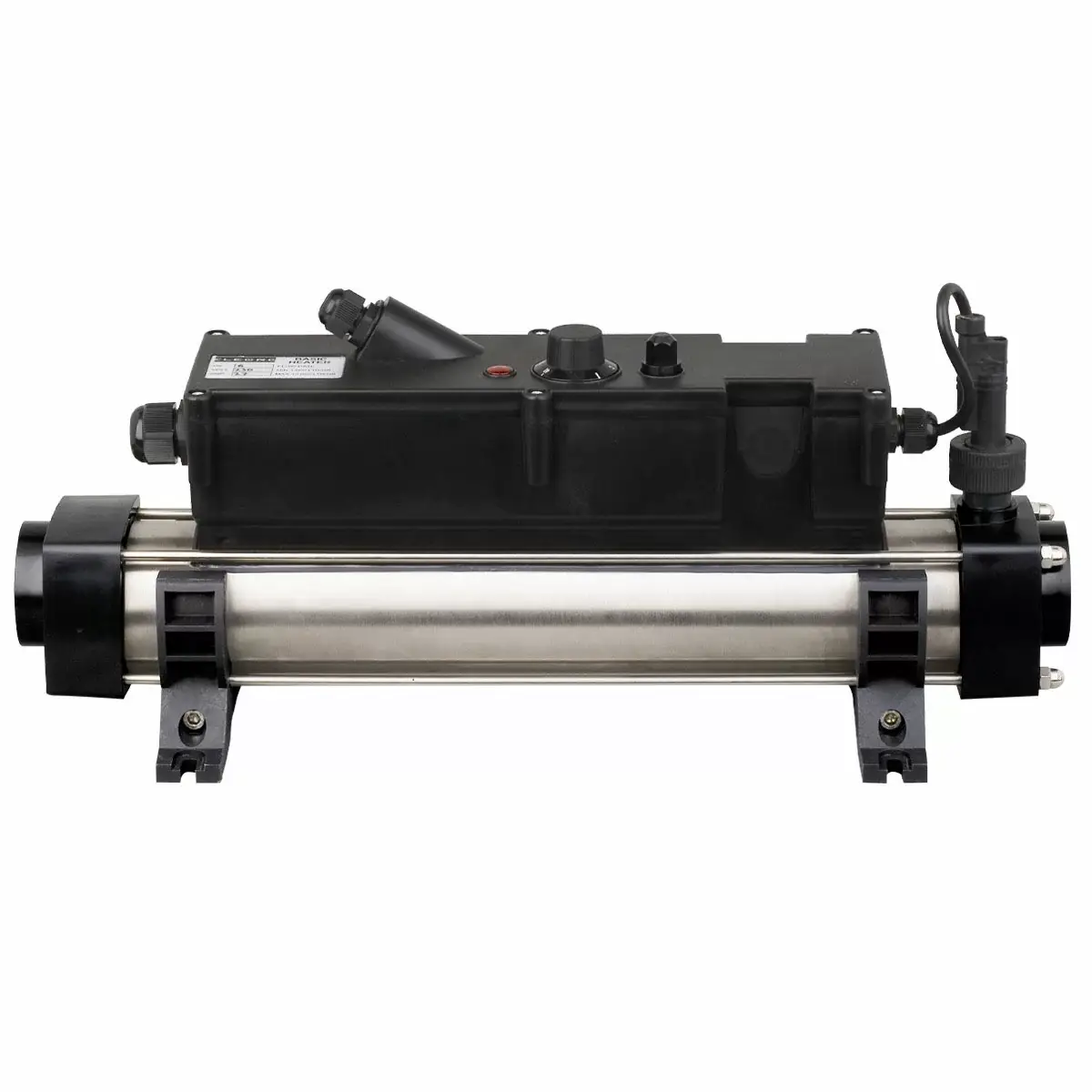

The Vulcan FlowLine Tytan 24 kW electric heater is designed for private and commercial pool owners who value efficiency and durability. Thanks to the titanium heating element with a spiral shape, water flows through the unit without the risk of scale accumulation, a common issue with traditional heaters. The FlowLine 2 series is the result of Vulcan's many years of experience in pool equipment manufacturing, confirming its reliability in daily use.

The unit is powered by 380 V and draws up to 35 A, allowing the 24 kW output to quickly raise the water temperature in pools with a capacity of several dozen cubic meters. Minimum flow rate is just 1 m³/h, and maximum is 17 m³/h, making the heater suitable for both small above-ground pools and larger installations. The analog thermostat allows intuitive temperature setting in the 0–45°C range, and the built-in thermal safety switch (60°C) provides additional protection.

Heater installation is simple – it can be placed on the floor or mounted on the wall, and connection to the pool system is made via 50 mm ABS connectors or 1½" thread. The unit does not include a contactor, so we recommend having the electrical connection done by a qualified electrician. With an IP44 protection rating, the unit is resistant to splashes and dust, making it a safe choice for the pool area.

Technical Specifications
