Key Benefits

• Titanium construction – flow tube and heating element entirely made of titanium, eliminating scale buildup and increasing resistance to aggressive pool water.
• Efficient heating – 9 kW power enables fast and effective water heating for medium to large pools.
• Precise temperature control – analog thermostat with 1.2°C adjustment steps in the 0–45°C range.
• Operational safety – thermal safety switch automatically shuts off the unit in case of overheating (60°C) – manual reset.
• Versatile installation – floor or wall mountable, adaptable to installation needs.
• High IP44 protection rating – splash and moisture resistant – ideal for poolside applications.

Description

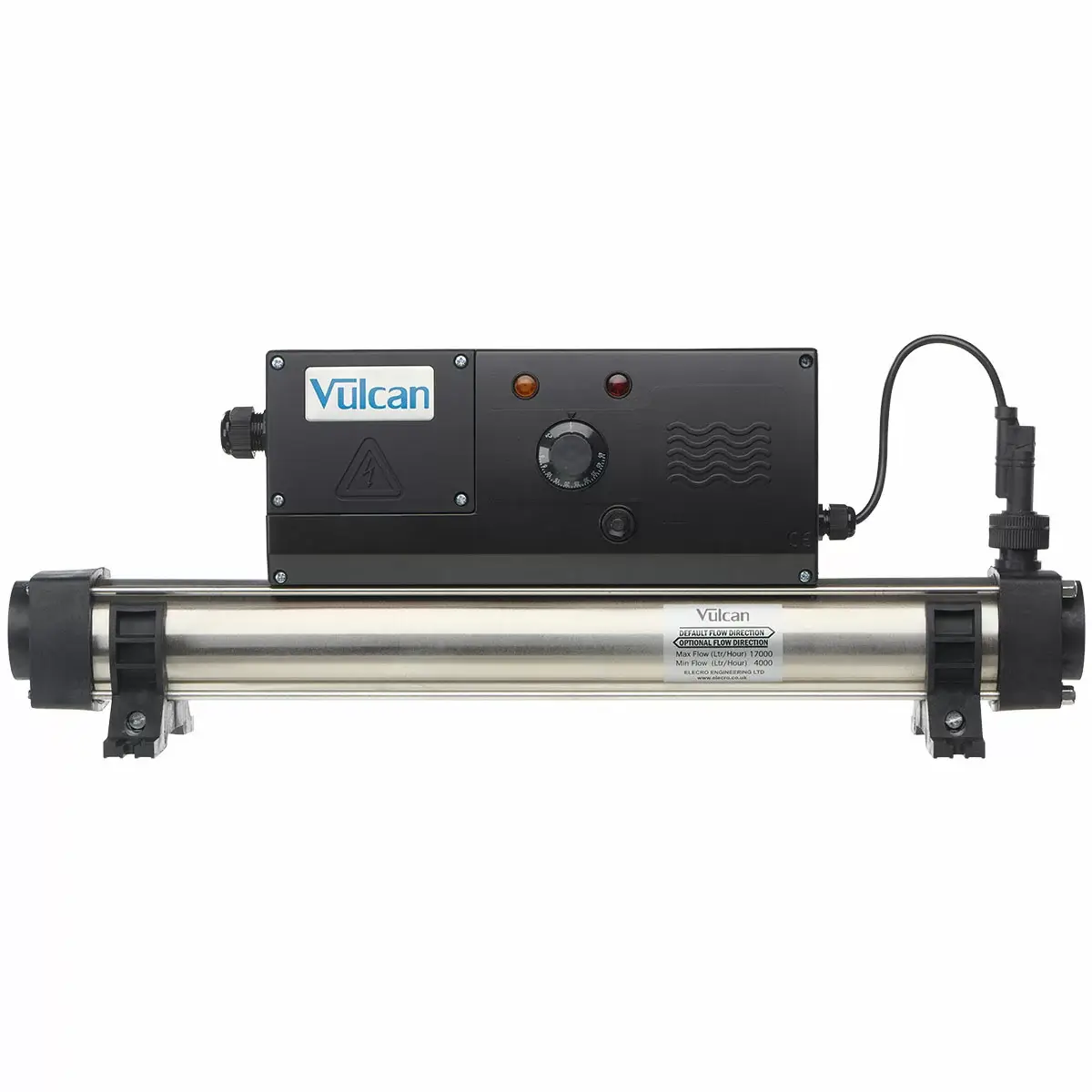

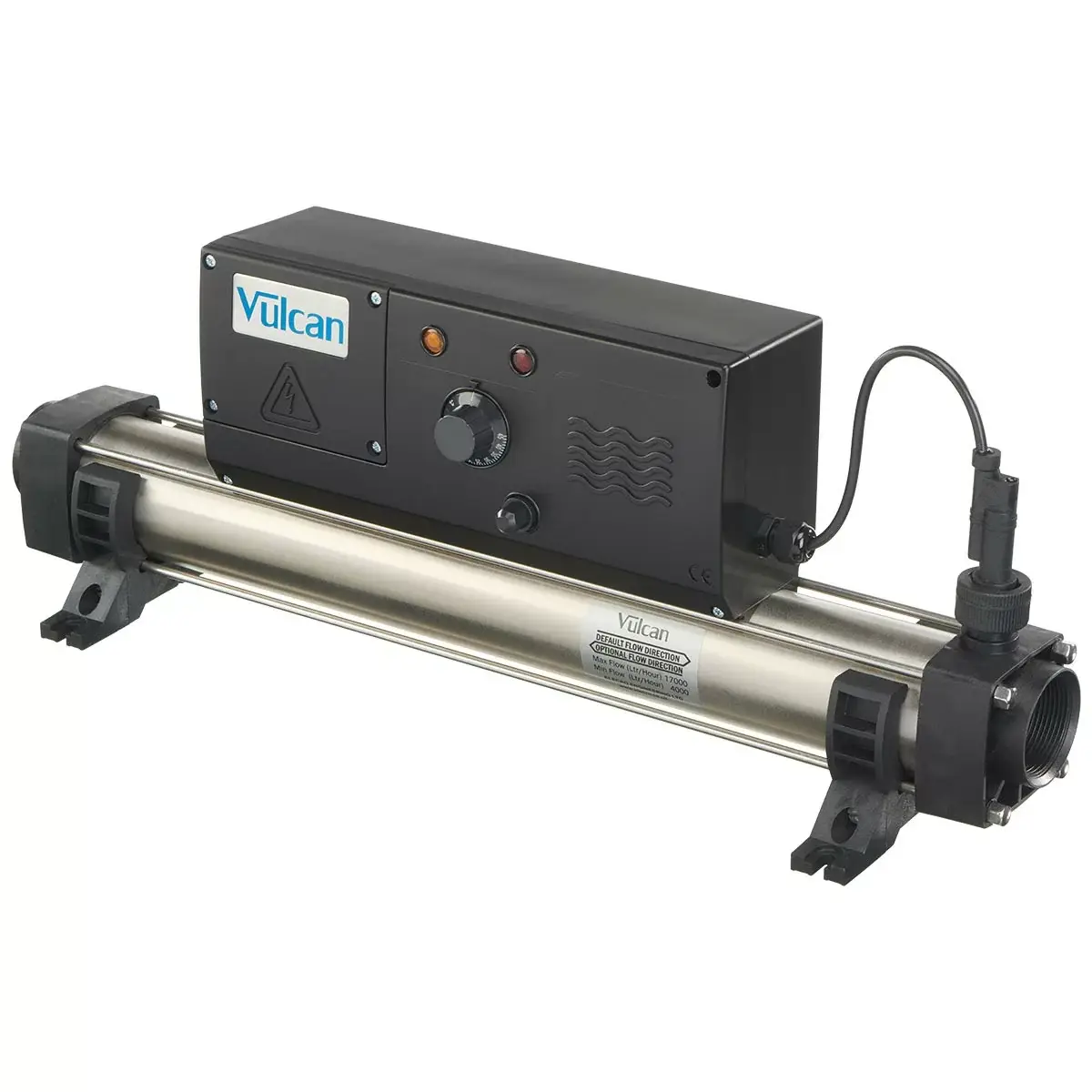

The Vulcan Evolution 2 Tytan pool water heater is an advanced solution for professional commercial pool heating. The unit's construction is entirely based on titanium – both the flow tube and the heating element are made from this exceptionally corrosion-resistant material. This makes the heater extremely durable and resistant to the negative effects of pool water, and it does not cause scale buildup, significantly extending its service life. The result is reliable and efficient operation without the need for anti-scaling chemicals.

Operation is controlled via an intuitive analog thermostat that allows precise temperature setting from 0°C to 45°C (1.2°C steps). This is an ideal solution for users who want full control over pool temperature and to adjust it according to the season or preferences. An additional safety feature is the thermal safety switch with a 60°C threshold – in case of overheating, the heater shuts off and requires manual reset. The housing has an IP44 protection rating, protecting against splashes and moisture in typical installation conditions.

The Vulcan Evolution Tytan 9 kW can be mounted in any position – either on the floor or on the wall. Two mounting options make it easy to adapt to the specific technical room in the pool area. The connection has a 1.5-inch internal thread or via 50 mm ABS connectors. The titanium flow tube is connected with EPDM and TPE gaskets, ensuring long-term system tightness. Maximum working pressure is up to 4 bar, and flow rate in the range of 4–17 m³/h can handle any standard commercial installation.

Technical Specifications
