Key benefits

• Titanium heating element and flow tube – eliminate scale buildup, ensuring long life and high efficiency.
• 12 kW power – fast and effective water heating for commercial pools.
• Analog control 0–45°C – precise temperature adjustment with 1.2°C increments.
• Thermal safety cutout 60°C – automatic overheat protection (manual reset).
• Floor or wall mounting – flexible installation in any equipment room.
• IP44 protection rating – resistant to moisture and dust, ideal for poolside environments.

Description

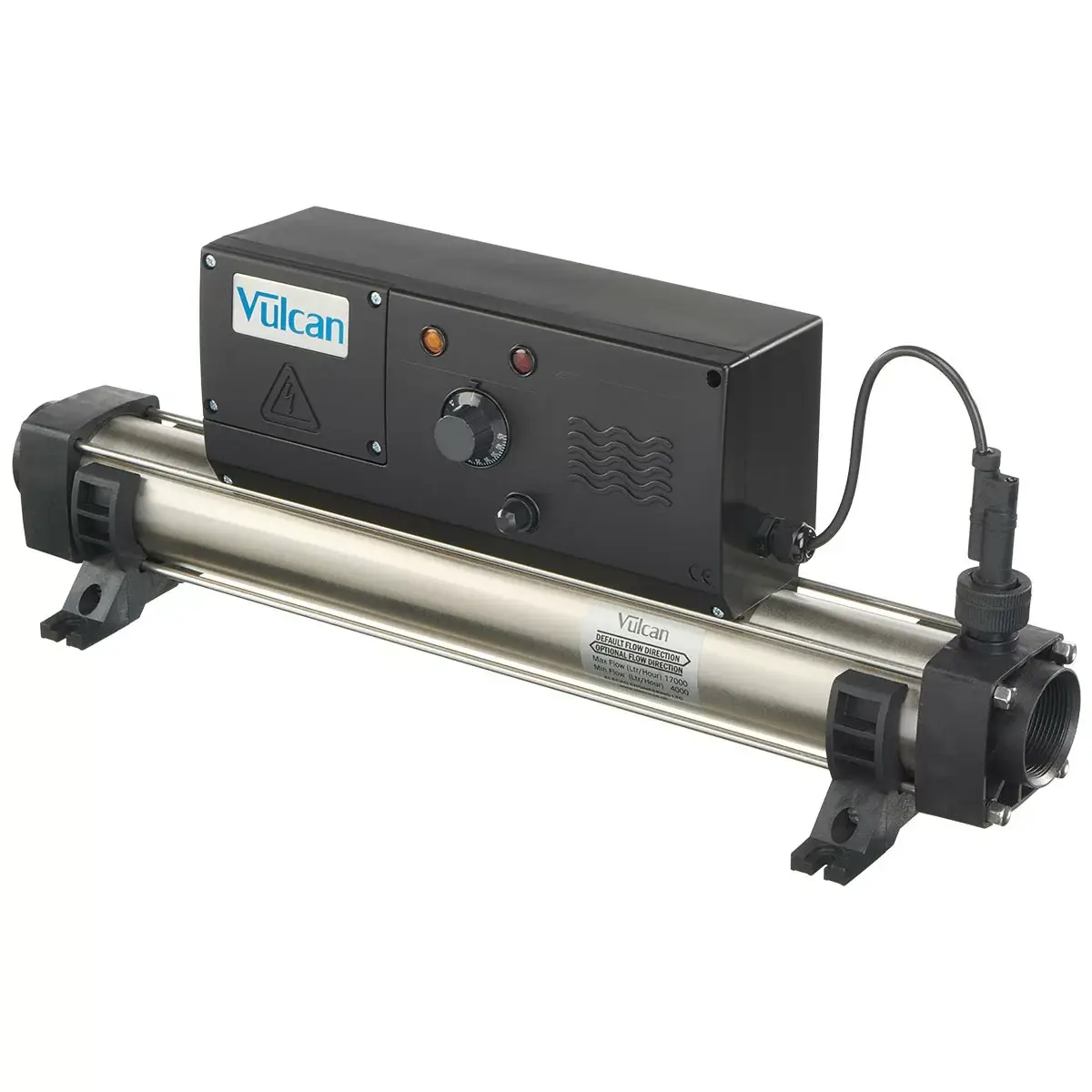

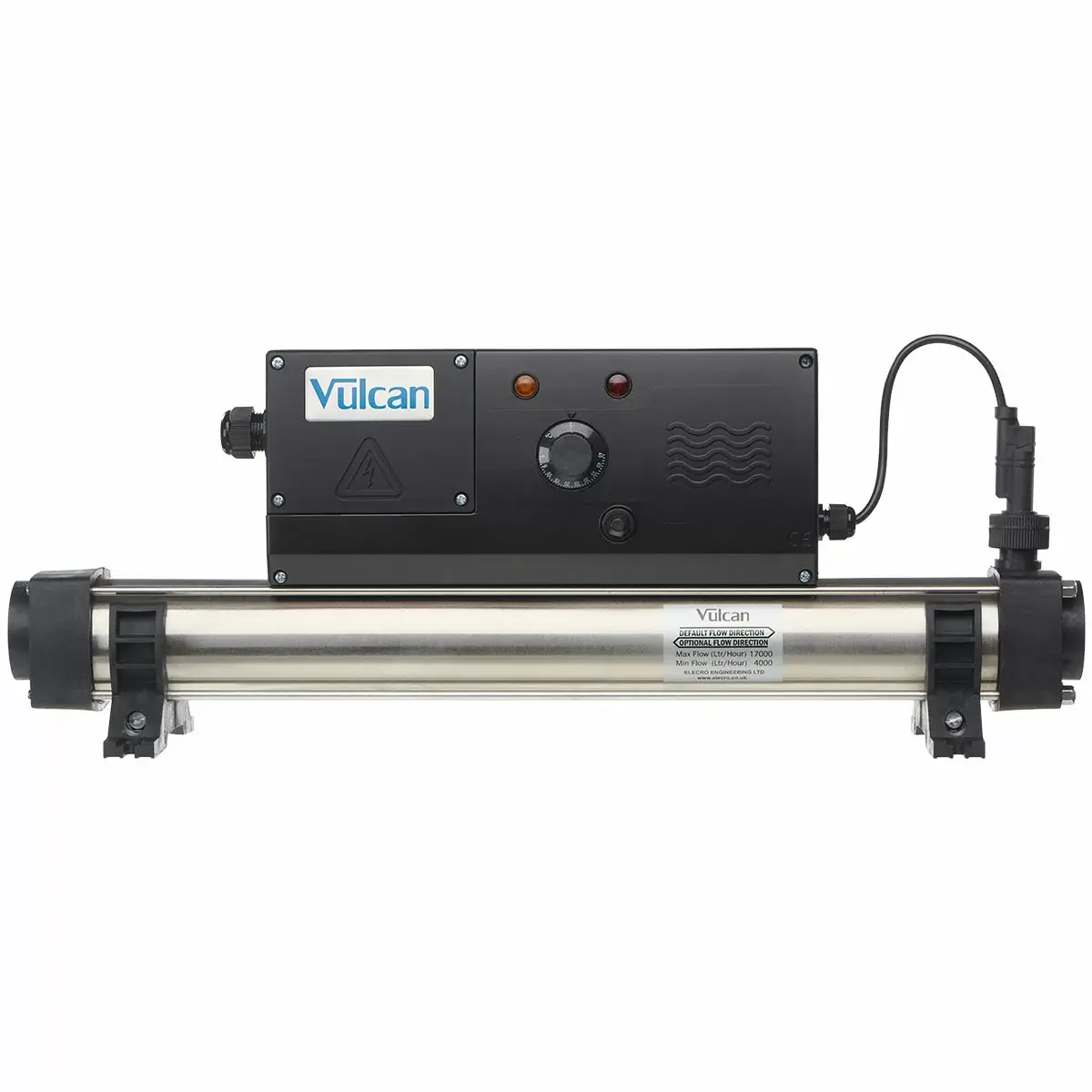

The Vulcan Evolution Tytan pool water heater is a professional unit designed for commercial pools. Made entirely of titanium – both the heating element and the flow tube – it guarantees resistance to corrosion and scale buildup, significantly extending service life and reducing maintenance costs. With 12 kW power and support for 220/380 V (current draw 53/18 A), the unit quickly heats water, maintaining a comfortable temperature in large bodies of water.

A precise analog thermostat allows temperature setting from 0°C to 45°C in 1.2°C increments, and a thermal safety cutout (60°C, manual reset) protects against overheating. The unit is equipped with high-temperature EPDM terminals and TPE end seals, ensuring tightness and durability. Mounting is possible on either the floor or wall, and the connection is a 1.5" female thread or 50 mm ABS fittings. Minimum required water flow is 4 m³/h, maximum 17 m³/h.

With an IP44 protection rating, the heater is resistant to water splashes and dust, and withstands pressure up to 4 bar. The 50/60 Hz frequency ensures stable operation across different power grids. Choose the Vulcan Evolution Tytan – a proven solution for heating water in commercial pools, combining titanium construction with ease of use and reliability.

Technical specifications
